760308106

760308106

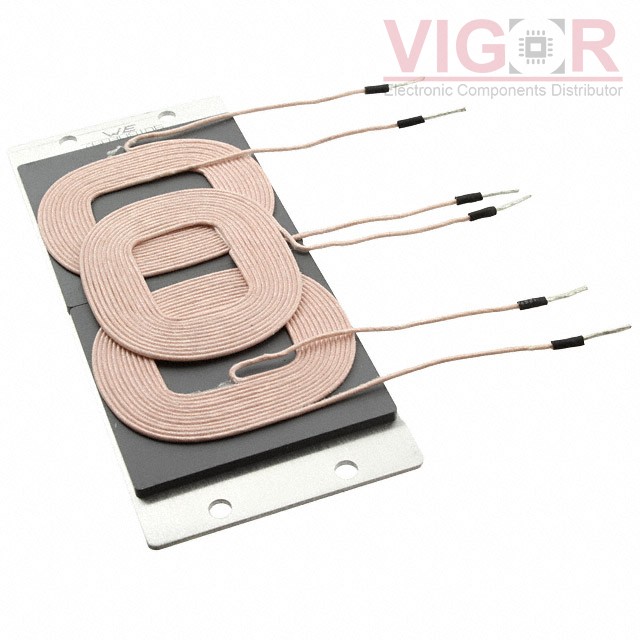

Image is for reference,
please contact us to get the real picture

Part No :

760308106

Manufacturer
Würth Elektronik Midcom
Description
TX 3 COIL 1 LAYER 10A
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 23 - Jul 27 2025
DataSheet
760308106 PDF
Availability
1 pieces
Unit Price
$33.00000

Current price of 760308106 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760308106 Specifications
Type Description
Series:WE-WPCC
Package:Box
Part Status:Active
Function:Transmitter
Type:3 Coil, 1 Layer
Inductance:12.5µH, 11.5µH, 12.5µH
Tolerance:-
DC Resistance (DCR):65mOhm
Q @ Freq:140 @ 125kHz
Current Rating (Amps):10A
Current - Saturation (Isat):10A
Frequency - Self Resonant:-
Operating Temperature:-
Size / Dimension:5.12" L x 0.28" W x 2.15" H (130.0mm x 7.0mm x 54.7mm)
