AWCCA-20N20H20-C01-B

AWCCA-20N20H20-C01-B

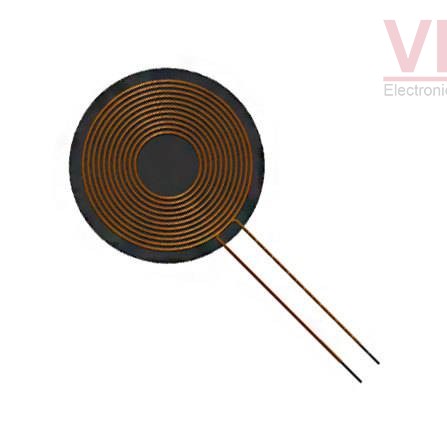

Image is for reference,
please contact us to get the real picture

Part No :

AWCCA-20N20H20-C01-B

Manufacturer
Abracon
Description
TX OR RX COIL, 1 COIL 6.3UH
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
AWCCA-20N20H20-C01-B PDF
Availability
189 pieces
Unit Price
$6.46000

Current price of AWCCA-20N20H20-C01-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AWCCA-20N20H20-C01-B Specifications
Type Description
Series:AWCCA
Package:Box
Part Status:Active
Function:Receiver, Transmitter
Type:1 Coil, 1 Layer
Inductance:6.3µH
Tolerance:±10%
DC Resistance (DCR):150mOhm
Q @ Freq:34 @ 100kHz
Current Rating (Amps):-
Current - Saturation (Isat):-
Frequency - Self Resonant:-
Operating Temperature:-25°C ~ 85°C
Size / Dimension:0.79" Dia x 0.08" H (20.0mm x 2.0mm)
