AWCCA-107T52H40-C01-B

AWCCA-107T52H40-C01-B

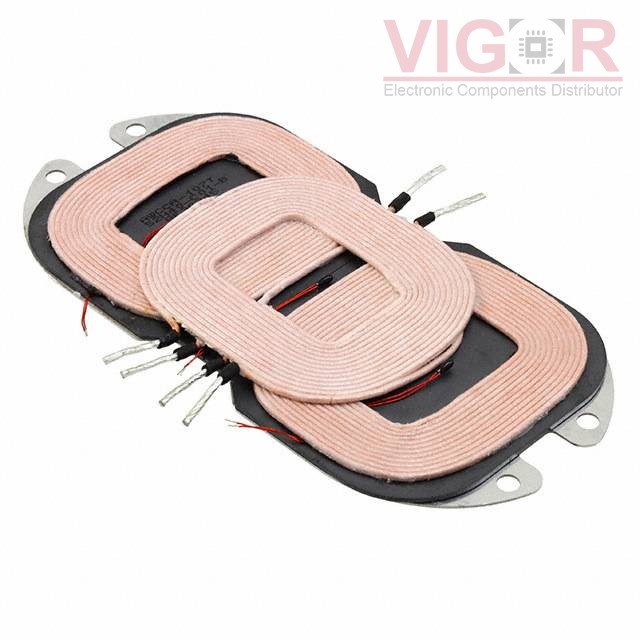

Image is for reference,
please contact us to get the real picture

Part No :

AWCCA-107T52H40-C01-B

Manufacturer
Abracon
Description
TX 3 COIL 1 LAYER 11.5UH 12UH
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 19 - Jul 23 2025
DataSheet
AWCCA-107T52H40-C01-B PDF
Availability
46 pieces
Unit Price
$10.15000

Current price of AWCCA-107T52H40-C01-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AWCCA-107T52H40-C01-B Specifications
Type Description
Series:AWCCA-107T52
Package:Box
Part Status:Active
Function:Transmitter
Type:3 Coil, 1 Layer
Inductance:11.5µH, 12µH
Tolerance:±10%
DC Resistance (DCR):56mOhm
Q @ Freq:80 @ 100kHz
Current Rating (Amps):7.5A
Current - Saturation (Isat):18A
Frequency - Self Resonant:7MHz
Operating Temperature:-25°C ~ 85°C
Size / Dimension:4.25" L x 2.06" W x 0.15" H (108.0mm x 52.5mm x 4.0mm)
