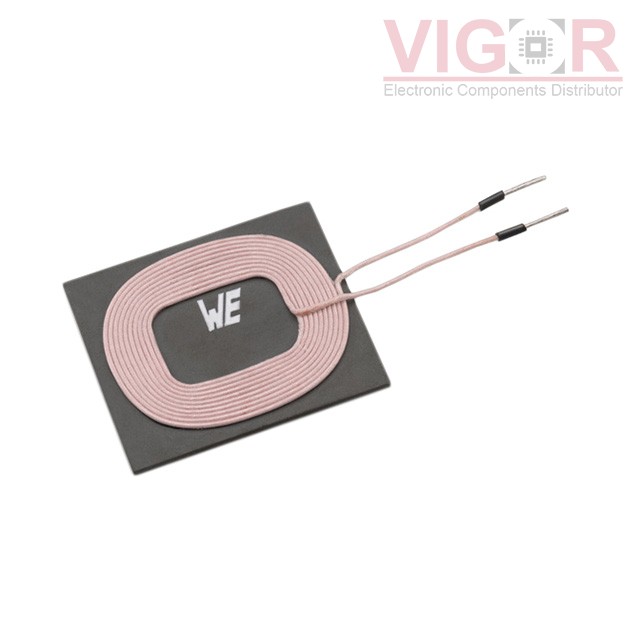

760308103146

760308103146

Image is for reference,
please contact us to get the real picture

Part No :

760308103146

Manufacturer
Würth Elektronik Midcom
Description
WE-WPCC WIRELESS POWER CHARGING
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
760308103146 PDF
Availability
0 pieces
Unit Price
$17.10000

Current price of 760308103146 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760308103146 Specifications
Type Description
Series:WE-WPCC
Package:Tray
Part Status:Active
Function:Transmitter
Type:1 Coil, 1 Layer
Inductance:8.5µH
Tolerance:±10%
DC Resistance (DCR):56mOhm Max
Q @ Freq:140 @ 125kHz
Current Rating (Amps):8A
Current - Saturation (Isat):16A
Frequency - Self Resonant:11MHz
Operating Temperature:-20°C ~ 60°C
Size / Dimension:2.01" L x 1.85" W x 0.18" H (51.0mm x 47.0mm x 4.5mm)
