760308100141

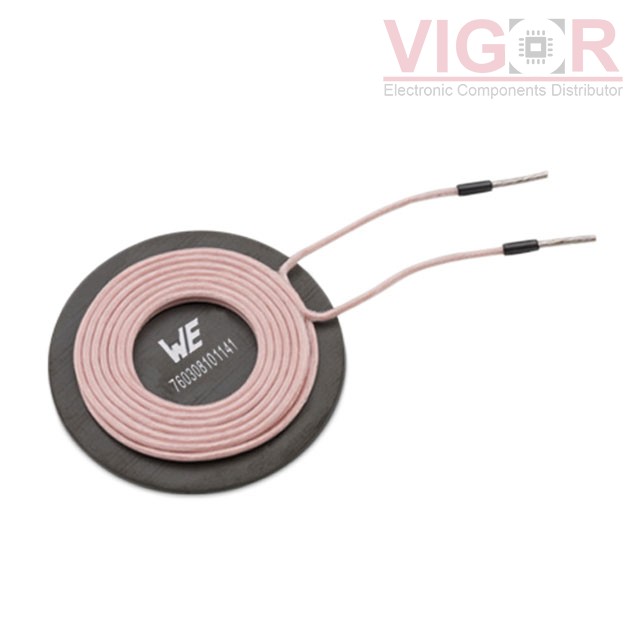

Image is for reference,
please contact us to get the real picture

Part No :: 760308100141

Manufacturer: Würth Elektronik Midcom

Description: TX 1 COIL 2 LAYER 10UH 9A

Catalog: Wireless Charging Coils

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: 760308100141 PDF

Availability: 214 pieces

Unit Price: ~~$22.55000~~

Current price of 760308100141 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760308100141 Specifications

Type	Description
Series:	WE-WPCC
Package:	Box
Part Status:	Active
Function:	Transmitter
Type:	1 Coil, 2 Layer
Inductance:	10µH
Tolerance:	±10%
DC Resistance (DCR):	30mOhm Max
Q @ Freq:	180 @ 125kHz
Current Rating (Amps):	9A
Current - Saturation (Isat):	16A
Frequency - Self Resonant:	11MHz
Operating Temperature:	-20°C ~ 105°C
Size / Dimension:	1.97" L x 1.89" W x 0.24" H (50.0mm x 48.0mm x 6.0mm)
