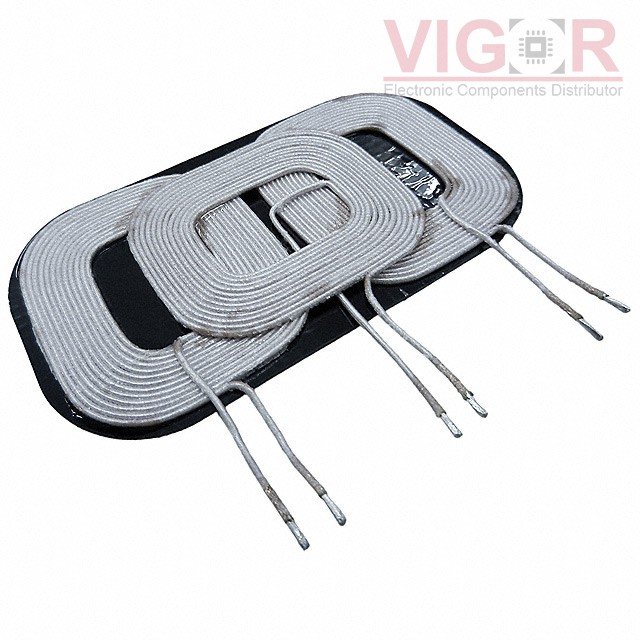

WT-1005660-12K2-A6-G

WT-1005660-12K2-A6-G

Image is for reference,
please contact us to get the real picture

Part No :

WT-1005660-12K2-A6-G

Manufacturer
TDK Corporation
Description
TX 3 COIL 1 LYR 12.5UH/11.5UH
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 23 - Jul 27 2025
DataSheet
WT-1005660-12K2-A6-G PDF
Availability
0 pieces
Unit Price
$15.96000

Current price of WT-1005660-12K2-A6-G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

WT-1005660-12K2-A6-G Specifications
Type Description
Series:WT
Package:Tray
Part Status:Not For New Designs
Function:Transmitter
Type:3 Coil, 1 Layer
Inductance:12.5µH, 11.5µH, 12.5µH
Tolerance:±10%
DC Resistance (DCR):80mOhm Max
Q @ Freq:70 @ 100kHz
Current Rating (Amps):-
Current - Saturation (Isat):-
Frequency - Self Resonant:-
Operating Temperature:-30°C ~ 70°C
Size / Dimension:3.94" L x 2.20" W x 0.11" H (100.0mm x 56.0mm x 2.8mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 760308101214

760308101214

RX 1 COIL 3 LAYER 26UH 1.1A

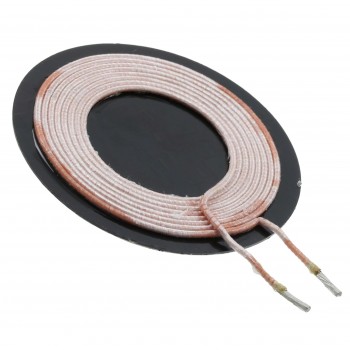

HOT WT-505060-8K2-LT

WT-505060-8K2-LT

TX 1 COIL 1 LYR 4.95UH

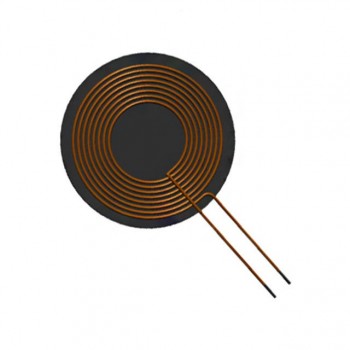

HOT AWCCA-30N30H20-C01-B
