760308101303

760308101303

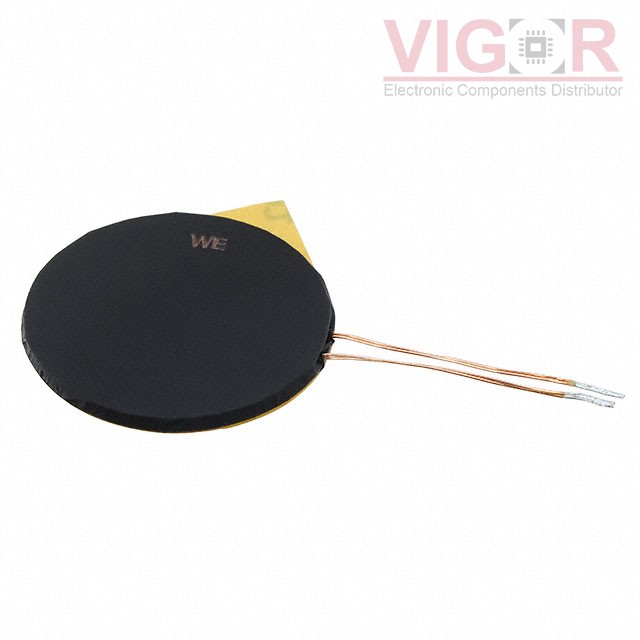

Image is for reference,
please contact us to get the real picture

Part No :

760308101303

Manufacturer
Würth Elektronik Midcom
Description
RX 1 COIL 3 LYR BIFILAR 47UH
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
760308101303 PDF
Availability
2183 pieces
Unit Price
$11.40000

Current price of 760308101303 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760308101303 Specifications
Type Description
Series:WE-WPCC
Package:Box
Part Status:Active
Function:Receiver
Type:1 Coil, 3 Layer, Bifilar
Inductance:47µH
Tolerance:±10%
DC Resistance (DCR):460mOhm
Q @ Freq:25 @ 125kHz
Current Rating (Amps):1.5A
Current - Saturation (Isat):3A
Frequency - Self Resonant:8MHz
Operating Temperature:-20°C ~ 105°C
Size / Dimension:1.02" L x 1.02" W x 0.05" H (26.0mm x 26.0mm x 1.3mm)
