WT1005690-12K2-A6-G

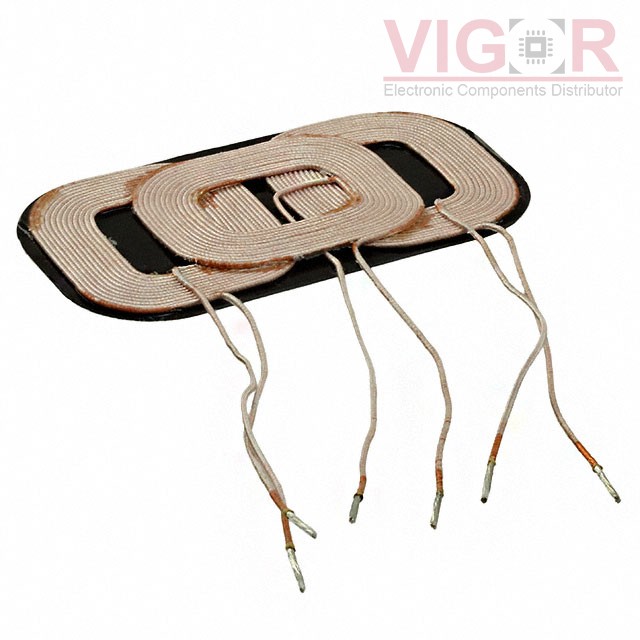

Image is for reference,
please contact us to get the real picture

Part No :: WT1005690-12K2-A6-G

Manufacturer: TDK Corporation

Description: TX 3 COIL 1 LAYER 11.5 - 12.5UH

Catalog: Wireless Charging Coils

Shipped from: HK warehouse

Expected Shipping Date: Jul 17 - Jul 21 2025

DataSheet: WT1005690-12K2-A6-G PDF

Availability: 11 pieces

Unit Price: ~~$11.51000~~

Current price of WT1005690-12K2-A6-G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

WT1005690-12K2-A6-G Specifications

Type	Description
Series:	WT
Package:	Tray
Part Status:	Not For New Designs
Function:	Transmitter
Type:	3 Coil, 1 Layer
Inductance:	11.5 ~ 12.5µH
Tolerance:	-
DC Resistance (DCR):	80mOhm
Q @ Freq:	-
Current Rating (Amps):	-
Current - Saturation (Isat):	-
Frequency - Self Resonant:	-
Operating Temperature:	-
Size / Dimension:	3.94" L x 2.20" W x 0.19" H (100.0mm x 56mm x 4.8mm)
