760308102144

760308102144

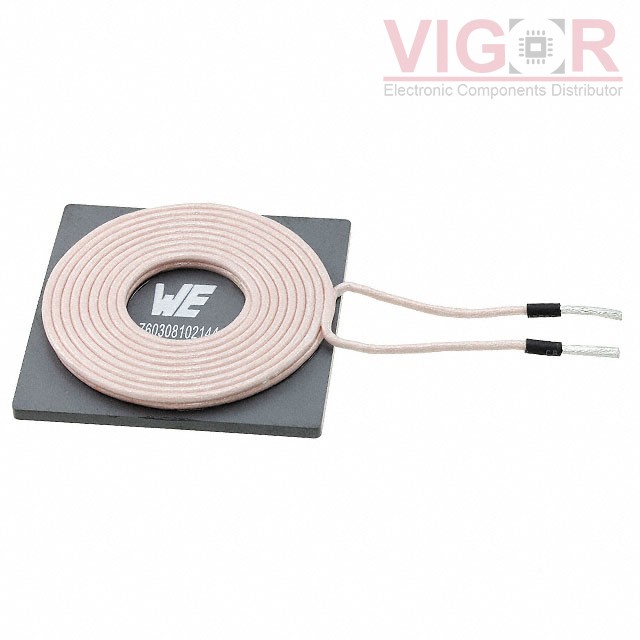

Image is for reference,
please contact us to get the real picture

Part No :

760308102144

Manufacturer
Würth Elektronik Midcom
Description
WE-WPCC WIRELESS POWER CHARGING
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
May 18 - May 22 2024
DataSheet
760308102144 PDF
Availability
21 pieces
Unit Price
$21.32000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 760308102144 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

760308102144 Specifications
Type Description
Series:WE-WPCC
Package:Box
Part Status:Active
Function:Transmitter
Type:1 Coil, 2 Layer
Inductance:19.5µH
Tolerance:±10%
DC Resistance (DCR):45mOhm Max
Q @ Freq:220 @ 125kHz
Current Rating (Amps):9.5A
Current - Saturation (Isat):20A
Frequency - Self Resonant:5MHz
Operating Temperature:-20°C ~ 105°C
Size / Dimension:2.10" L x 2.10" W x 0.28" H (53.30mm x 53.30mm x 7.00mm)
