760308103215

760308103215

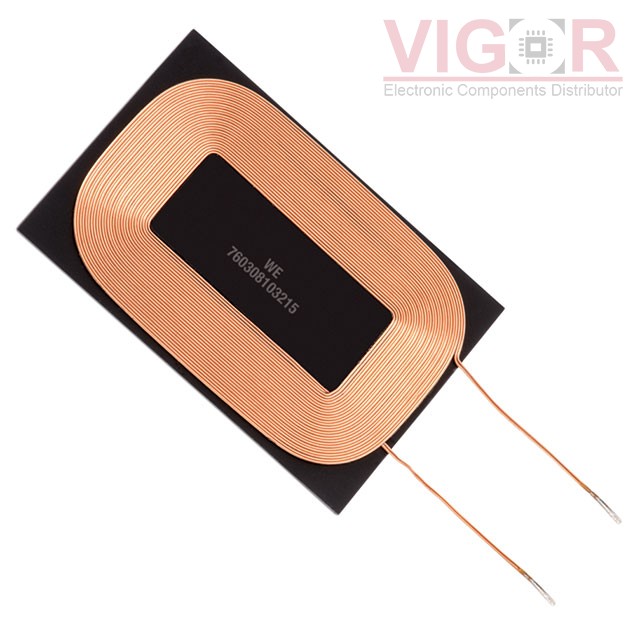

Image is for reference,
please contact us to get the real picture

Part No :

760308103215

Manufacturer
Würth Elektronik Midcom
Description
RX 1 COIL 1 LAYER 14.3UH 3A
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 19 - Jul 23 2025
DataSheet
760308103215 PDF
Availability
28 pieces
Unit Price
$8.33000

Current price of 760308103215 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760308103215 Specifications
Type Description
Series:WE-WPCC
Package:Tray
Part Status:Active
Function:Receiver
Type:1 Coil, 1 Layer
Inductance:14.3µH
Tolerance:±10%
DC Resistance (DCR):190mOhm Max
Q @ Freq:40 @ 125kHz
Current Rating (Amps):3A
Current - Saturation (Isat):8A
Frequency - Self Resonant:8.8MHz
Operating Temperature:-20°C ~ 105°C
Size / Dimension:1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.0mm)
