ADS7805UBG4

ADS7805UBG4

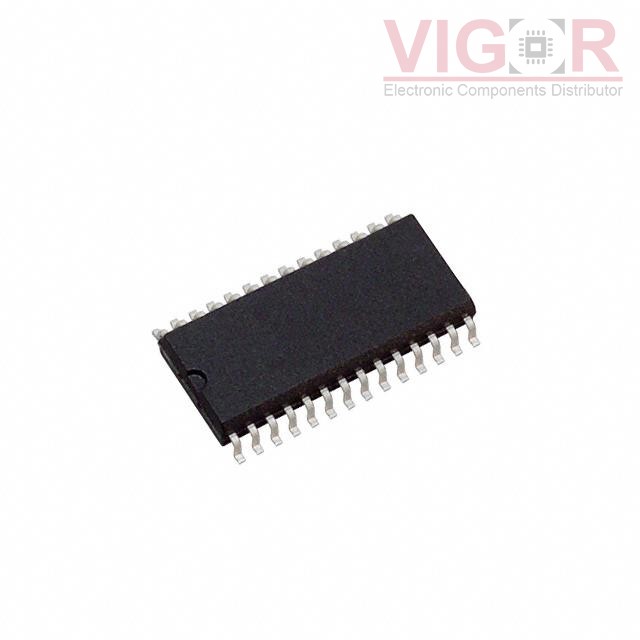

Image is for reference,
please contact us to get the real picture

Part No :

ADS7805UBG4

Manufacturer
Texas Instruments
Description
IC ADC 16BIT SAR 28SOIC
Catalog
Data Acquisition - Analog to Digital Converters (ADC)
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
ADS7805UBG4 PDF
Availability
3728 pieces
Unit Price
$75.48400

Current price of ADS7805UBG4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADS7805UBG4 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Bits:16
Sampling Rate (Per Second):100k
Number of Inputs:1
Input Type:Single Ended
Data Interface:Parallel
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:External, Internal
Voltage - Supply, Analog:5V
Voltage - Supply, Digital:5V
Features:-
Operating Temperature:-25°C ~ 85°C
Package / Case:28-SOIC (0.295", 7.50mm Width)
Supplier Device Package:28-SOIC
Mounting Type:Surface Mount
