TLV5580IPWG4

TLV5580IPWG4

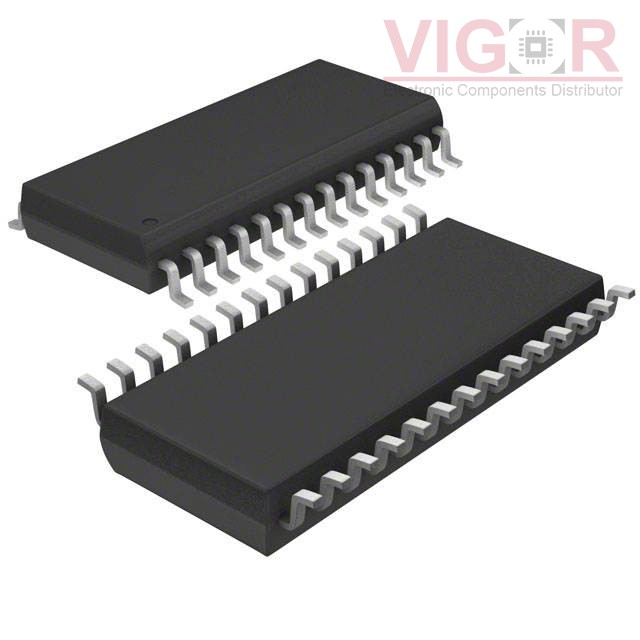

Image is for reference,
please contact us to get the real picture

Part No :

TLV5580IPWG4

Manufacturer
Texas Instruments
Description
IC ADC 8BIT PIPELINED 28TSSOP
Catalog
Data Acquisition - Analog to Digital Converters (ADC)
Shipped from
HK warehouse
Expected Shipping Date
Aug 24 - Aug 28 2025
DataSheet
TLV5580IPWG4 PDF
Availability
2657 pieces
Unit Price
$0.00000

Current price of TLV5580IPWG4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLV5580IPWG4 Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Number of Bits:8
Sampling Rate (Per Second):80M
Number of Inputs:1
Input Type:Single Ended
Data Interface:Parallel
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:Pipelined
Reference Type:External, Internal
Voltage - Supply, Analog:3V ~ 3.6V
Voltage - Supply, Digital:3V ~ 3.6V
Features:-
Operating Temperature:-40°C ~ 85°C
Package / Case:28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:28-TSSOP
Mounting Type:Surface Mount
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT ADS8343EB/2K5G4

ADS8343EB/2K5G4

IC ADC 16BIT SAR 16SSOP
HOT ADC0831CCN

ADC0831CCN

IC ADC 8BIT SAR 8DIP

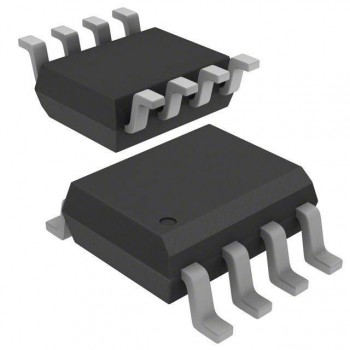

HOT AD7827BRZ
