THS1209CDAG4

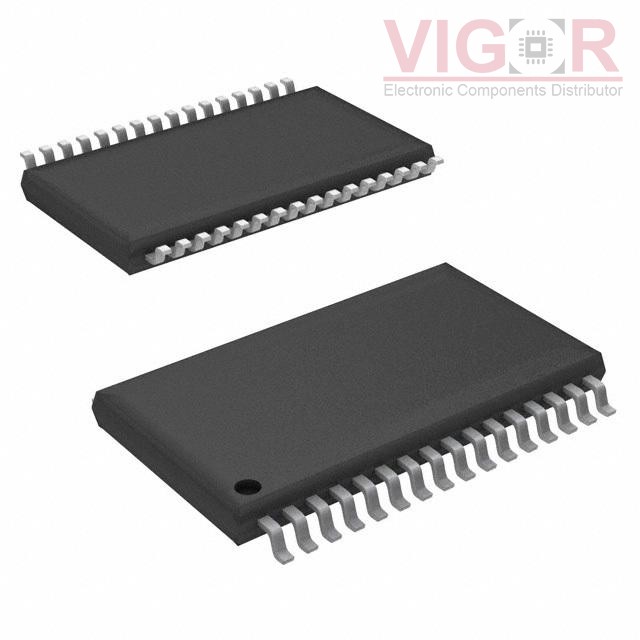

Image is for reference,
please contact us to get the real picture

Part No :: THS1209CDAG4

Manufacturer: Texas Instruments

Description: IC ADC 12BIT PIPELINED 32TSSOP

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

Shipped from: HK warehouse

Expected Shipping Date: Aug 09 - Aug 13 2025

DataSheet: THS1209CDAG4 PDF

Availability: 6479 pieces

Unit Price: ~~$0.00000~~

Current price of THS1209CDAG4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

THS1209CDAG4 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Bits:	12
Sampling Rate (Per Second):	8M
Number of Inputs:	1, 2
Input Type:	Differential, Single Ended
Data Interface:	Parallel
Configuration:	S/H-MUX-ADC
Ratio - S/H:ADC:	2:1
Number of A/D Converters:	1
Architecture:	Pipelined
Reference Type:	External, Internal
Voltage - Supply, Analog:	5V
Voltage - Supply, Digital:	5V
Features:	Simultaneous Sampling
Operating Temperature:	0°C ~ 70°C
Package / Case:	32-TSSOP (0.240", 6.10mm Width)
Supplier Device Package:	32-TSSOP
Mounting Type:	Surface Mount

Please confirm the specifications of the products when ordering.
