ADC0804LCN/NOPB

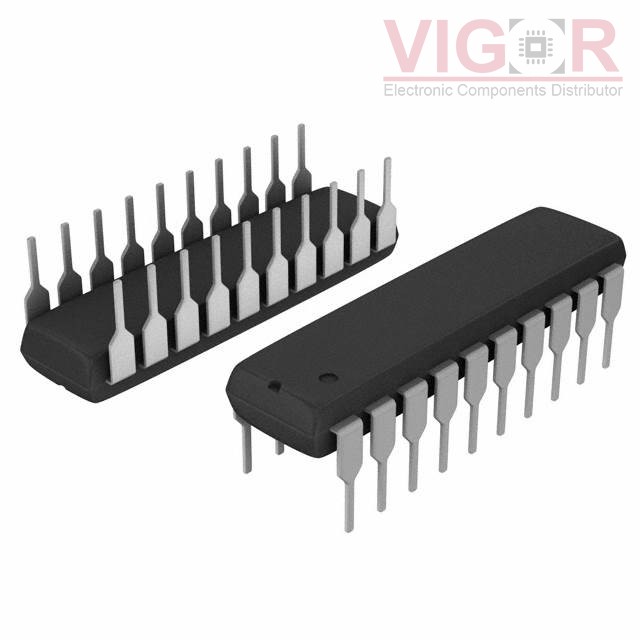

Image is for reference,
please contact us to get the real picture

Part No :: ADC0804LCN/NOPB

Manufacturer: Texas Instruments

Description: IC ADC 8BIT SAR 20DIP

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

Shipped from: HK warehouse

Expected Shipping Date: Aug 11 - Aug 15 2025

DataSheet: ADC0804LCN/NOPB PDF

Availability: 4252 pieces

Unit Price: ~~$0.00000~~

Current price of ADC0804LCN/NOPB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADC0804LCN/NOPB Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Bits:	8
Sampling Rate (Per Second):	10k
Number of Inputs:	1
Input Type:	Differential
Data Interface:	Parallel
Configuration:	ADC
Ratio - S/H:ADC:	-
Number of A/D Converters:	1
Architecture:	SAR
Reference Type:	External, Supply
Voltage - Supply, Analog:	4.5V ~ 6.3V
Voltage - Supply, Digital:	4.5V ~ 6.3V
Features:	-
Operating Temperature:	0°C ~ 70°C
Package / Case:	20-DIP (0.300", 7.62mm)
Supplier Device Package:	20-DIP
Mounting Type:	Through Hole
