ADS5546IRGZRG4

ADS5546IRGZRG4

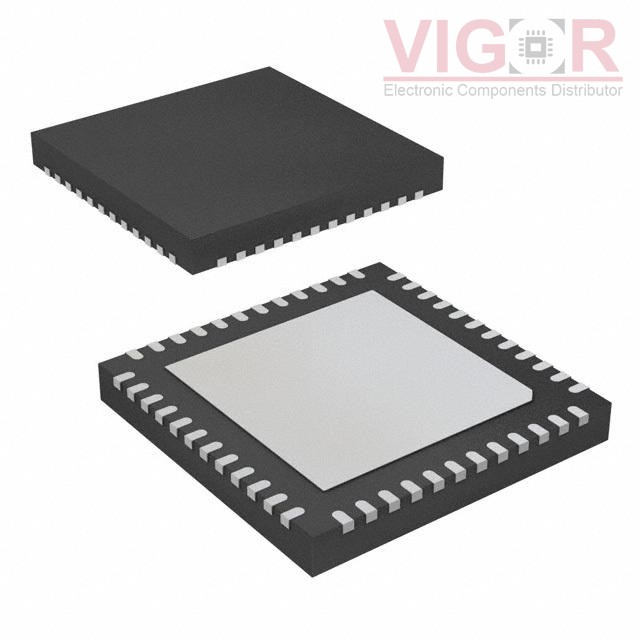

Image is for reference,
please contact us to get the real picture

Part No :

ADS5546IRGZRG4

Manufacturer
Texas Instruments
Description
IC ADC 14BIT PIPELINED 48VQFN
Catalog
Data Acquisition - Analog to Digital Converters (ADC)
Shipped from
HK warehouse
Expected Shipping Date
Aug 18 - Aug 22 2025
DataSheet
ADS5546IRGZRG4 PDF
Availability
5000 pieces
Unit Price
$0.00000

Current price of ADS5546IRGZRG4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADS5546IRGZRG4 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
Number of Bits:14
Sampling Rate (Per Second):190M
Number of Inputs:1
Input Type:Differential
Data Interface:LVDS - Parallel, Parallel
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:Pipelined
Reference Type:External, Internal
Voltage - Supply, Analog:3V ~ 3.6V
Voltage - Supply, Digital:3V ~ 3.6V
Features:-
Operating Temperature:-40°C ~ 85°C
Package / Case:48-VFQFN Exposed Pad
Supplier Device Package:48-VQFN (7x7)
Mounting Type:Surface Mount
