MAX1156AEUP+

MAX1156AEUP+

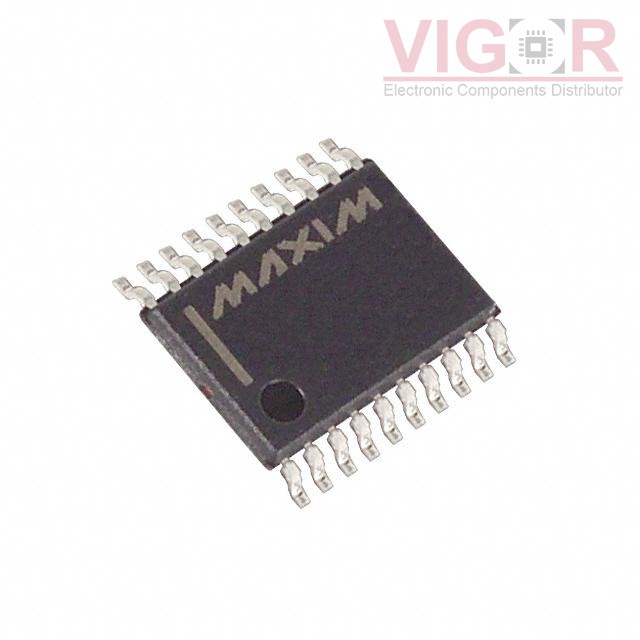

Image is for reference,
please contact us to get the real picture

Part No :

MAX1156AEUP+

Manufacturer
Maxim Integrated
Description
IC ADC 14BIT 135KSPS 20-TSSOP
Catalog
Data Acquisition - Analog to Digital Converters (ADC)
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
MAX1156AEUP+ PDF
Availability
4479 pieces
Unit Price
$0.00000

Current price of MAX1156AEUP+ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MAX1156AEUP+ Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Number of Bits:14
Sampling Rate (Per Second):135k
Number of Inputs:1
Input Type:Single Ended
Data Interface:Parallel
Configuration:ADC
Ratio - S/H:ADC:0:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:External, Internal
Voltage - Supply, Analog:5V
Voltage - Supply, Digital:2.7V ~ 5.25V
Features:-
Operating Temperature:-40°C ~ 85°C
Package / Case:20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:20-TSSOP
Mounting Type:Surface Mount
