MAX172ACWG

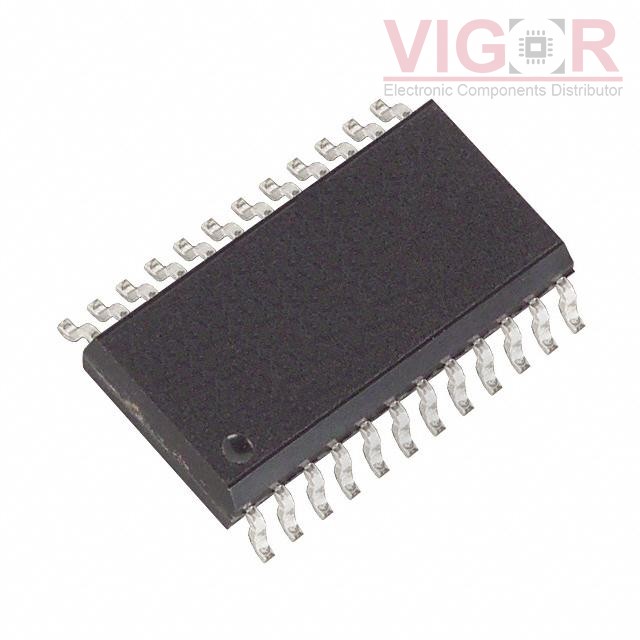

Image is for reference,
please contact us to get the real picture

Part No :: MAX172ACWG

Manufacturer: Maxim Integrated

Description: IC ADC 12BIT SAR 24SOIC

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

Shipped from: HK warehouse

Expected Shipping Date: Aug 13 - Aug 17 2025

DataSheet: MAX172ACWG PDF

Availability: 7165 pieces

Unit Price: ~~$0.00000~~

Current price of MAX172ACWG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MAX172ACWG Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Bits:	12
Sampling Rate (Per Second):	100k
Number of Inputs:	1
Input Type:	Single Ended
Data Interface:	Parallel
Configuration:	S/H-ADC
Ratio - S/H:ADC:	1:1
Number of A/D Converters:	1
Architecture:	SAR
Reference Type:	Internal
Voltage - Supply, Analog:	5V, -12V, -15V
Voltage - Supply, Digital:	5V, -12V, -15V
Features:	-
Operating Temperature:	0°C ~ 70°C
Package / Case:	24-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	24-SOIC
Mounting Type:	Surface Mount

Please confirm the specifications of the products when ordering.
