AD5535BKBCZ

AD5535BKBCZ

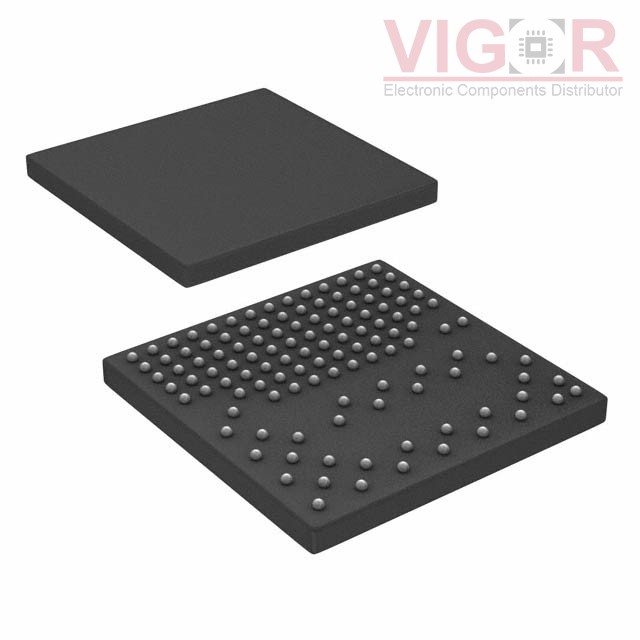

Image is for reference,
please contact us to get the real picture

Part No :

AD5535BKBCZ

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC DAC 14BIT V-OUT 124CSPBGA
Catalog
Data Acquisition - Digital to Analog Converters (DAC)
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
AD5535BKBCZ PDF
Availability
33250 pieces
Unit Price
$154.15000

Current price of AD5535BKBCZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AD5535BKBCZ Specifications
Type Description
Series:denseDAC
Package:Tray
Part Status:Active
Number of Bits:14
Number of D/A Converters:32
Settling Time:65µs (Typ)
Output Type:Voltage - Buffered
Differential Output:No
Data Interface:SPI, DSP
Reference Type:External
Voltage - Supply, Analog:5V
Voltage - Supply, Digital:2.7V ~ 5.25V
INL/DNL (LSB):±0.1, ±0.5
Architecture:String DAC
Operating Temperature:-10°C ~ 85°C
Package / Case:124-LBGA, CSPBGA
Supplier Device Package:124-CSPBGA (15x15)
Mounting Type:Surface Mount
