AD7224KNZ

AD7224KNZ

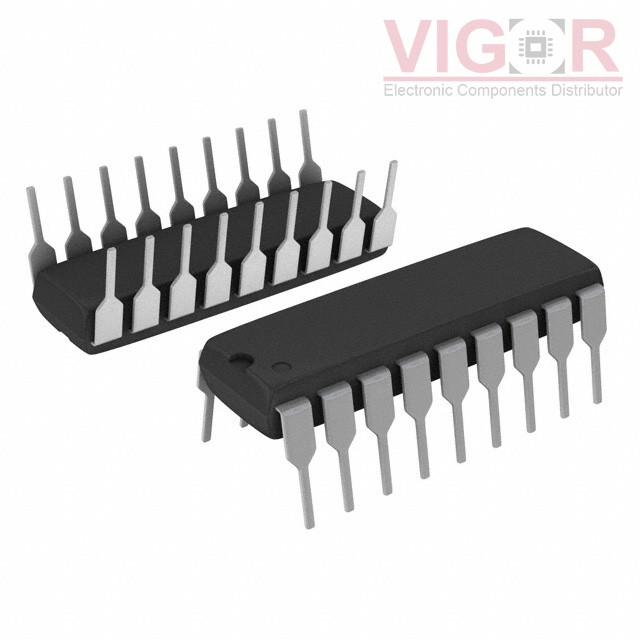

Image is for reference,
please contact us to get the real picture

Part No :

AD7224KNZ

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC DAC 8BIT V-OUT 18DIP
Catalog
Data Acquisition - Digital to Analog Converters (DAC)
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
AD7224KNZ PDF
Availability
54 pieces
Unit Price
$18.68000

Current price of AD7224KNZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AD7224KNZ Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Bits:8
Number of D/A Converters:1
Settling Time:20µs
Output Type:Voltage - Buffered
Differential Output:No
Data Interface:Parallel
Reference Type:External
Voltage - Supply, Analog:11.4V ~ 16.5V, ±5V
Voltage - Supply, Digital:14.25V ~ 15.75V
INL/DNL (LSB):±1 (Max), ±1 (Max)
Architecture:R-2R
Operating Temperature:-40°C ~ 85°C
Package / Case:18-DIP (0.300", 7.62mm)
Supplier Device Package:18-PDIP
Mounting Type:Through Hole
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
