AD9136BCPZ

AD9136BCPZ

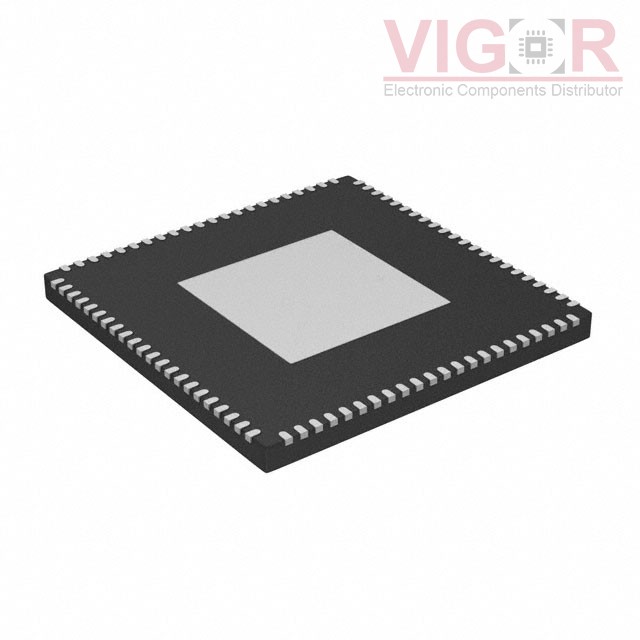

Image is for reference,
please contact us to get the real picture

Part No :

AD9136BCPZ

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC DAC 16BIT A-OUT 88LFCSP
Catalog
Data Acquisition - Digital to Analog Converters (DAC)
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
AD9136BCPZ PDF
Availability
2606 pieces
Unit Price
$100.90000

Current price of AD9136BCPZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AD9136BCPZ Specifications
Type Description
Series:TxDAC+®
Package:Tray
Part Status:Active
Number of Bits:16
Number of D/A Converters:2
Settling Time:20ns (Typ)
Output Type:Current - Unbuffered
Differential Output:Yes
Data Interface:JESD204B
Reference Type:Internal
Voltage - Supply, Analog:3.13V ~ 3.47V
Voltage - Supply, Digital:1.14V ~ 1.26V
INL/DNL (LSB):±2, ±1
Architecture:Current Source
Operating Temperature:-40°C ~ 85°C
Package / Case:88-VFQFN Exposed Pad, CSP
Supplier Device Package:88-LFCSP-VQ (12x12)
Mounting Type:Surface Mount
