MAX5825AWP+T

MAX5825AWP+T

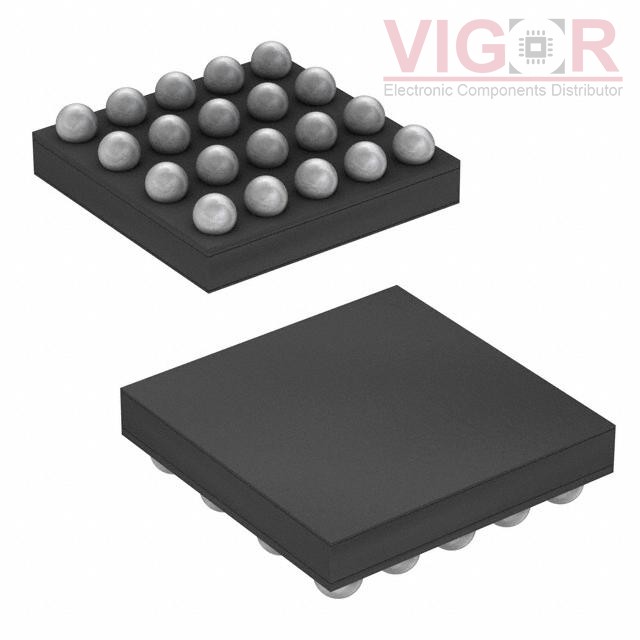

Image is for reference,
please contact us to get the real picture

Part No :

MAX5825AWP+T

Manufacturer
Maxim Integrated
Description
IC DAC 12BIT V-OUT 20WLP
Catalog
Data Acquisition - Digital to Analog Converters (DAC)
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
MAX5825AWP+T PDF
Availability
5305 pieces
Unit Price
$12.50600

Current price of MAX5825AWP+T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MAX5825AWP+T Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Bits:12
Number of D/A Converters:8
Settling Time:4.5µs (Typ)
Output Type:Voltage - Buffered
Differential Output:No
Data Interface:I²C
Reference Type:External, Internal
Voltage - Supply, Analog:2.7V ~ 5.5V
Voltage - Supply, Digital:2.7V ~ 5.5V
INL/DNL (LSB):±0.5, ±0.2
Architecture:R-2R
Operating Temperature:-40°C ~ 125°C
Package / Case:20-WFBGA, WLBGA
Supplier Device Package:20-WLP (2.52x2.08)
Mounting Type:Surface Mount
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
