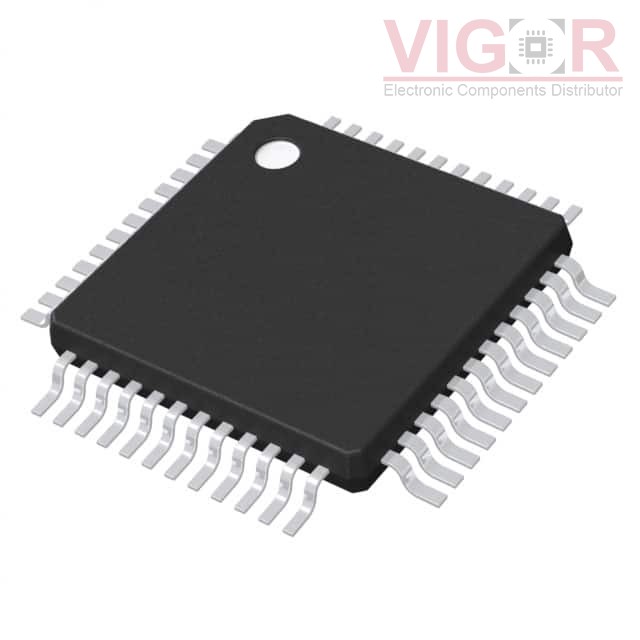

DSPIC33CH128MP505-E/PT

Image is for reference,
please contact us to get the real picture

Part No :: DSPIC33CH128MP505-E/PT

Manufacturer: Roving Networks / Microchip Technology

Description: IC MCU 16BIT 152KB FLASH 48TQFP

Catalog: Embedded - Microcontrollers

Shipped from: HK warehouse

Expected Shipping Date: Jul 05 - Jul 09 2025

DataSheet: DSPIC33CH128MP505-E/PT PDF

Availability: 317 pieces

Unit Price: ~~$5.26000~~

Current price of DSPIC33CH128MP505-E/PT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DSPIC33CH128MP505-E/PT Specifications

Type	Description
Series:	Automotive, AEC-Q100, dsPIC™ 33CH, Functional Safety (FuSa)
Package:	Tray
Part Status:	Active
Core Processor:	dsPIC
Core Size:	16-Bit Dual-Core
Speed:	180MHz, 200MHz
Connectivity:	CANbus, I²C, IrDA, LINbus, SPI, UART/USART
Peripherals:	Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, WDT
Number of I/O:	39
Program Memory Size:	152KB (152K x 8)
Program Memory Type:	FLASH, PRAM
EEPROM Size:	-
RAM Size:	20K x 8
Voltage - Supply (Vcc/Vdd):	3V ~ 3.6V
Data Converters:	A/D 31x12b; D/A 4x12b
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	48-TQFP
Supplier Device Package:	48-TQFP (7x7)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

MSP430FR6045IPZ

IC MCU 16BIT 128KB FRAM 100LQFP

HOT

C8051F061-GQ

IC MCU 8BIT 64KB FLASH 64TQFP

HOT

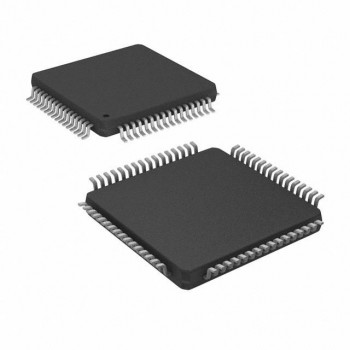

PIC32MX470F512H-V/PT
