PIC16F1784-E/P

PIC16F1784-E/P

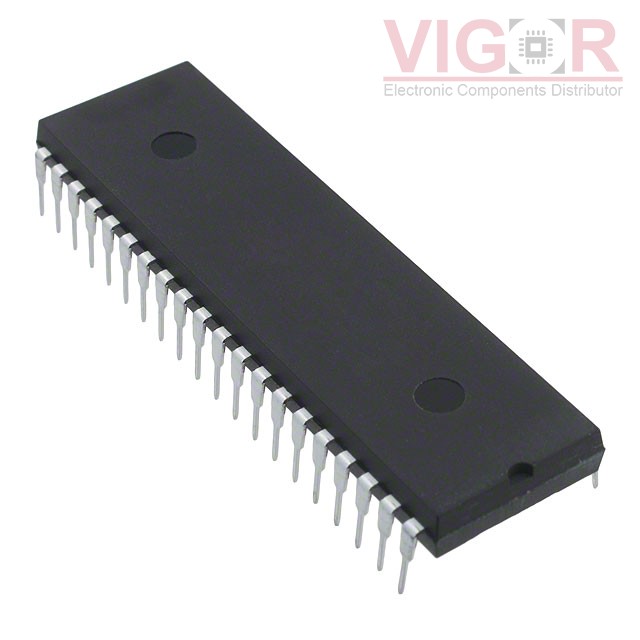

Image is for reference,
please contact us to get the real picture

Part No :

PIC16F1784-E/P

Manufacturer
Roving Networks / Microchip Technology
Description
IC MCU 8BIT 7KB FLASH 40DIP
Catalog
Embedded - Microcontrollers
Shipped from
HK warehouse
Expected Shipping Date
Aug 25 - Aug 29 2025
DataSheet
PIC16F1784-E/P PDF
Availability
125 pieces
Unit Price
$2.54100

Current price of PIC16F1784-E/P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PIC16F1784-E/P Specifications
Type Description
Series:PIC® XLP™ 16F
Package:Tube
Part Status:Active
Core Processor:PIC
Core Size:8-Bit
Speed:32MHz
Connectivity:I²C, LINbus, SPI, UART/USART
Peripherals:Brown-out Detect/Reset, POR, PSMC, PWM, WDT
Number of I/O:35
Program Memory Size:7KB (4K x 14)
Program Memory Type:FLASH
EEPROM Size:256 x 8
RAM Size:512 x 8
Voltage - Supply (Vcc/Vdd):2.3V ~ 5.5V
Data Converters:A/D 14x12b; D/A 1x8b
Oscillator Type:Internal
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Through Hole
Package / Case:40-DIP (0.600", 15.24mm)
Supplier Device Package:40-PDIP
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
