S9S08SG16E1WTLR

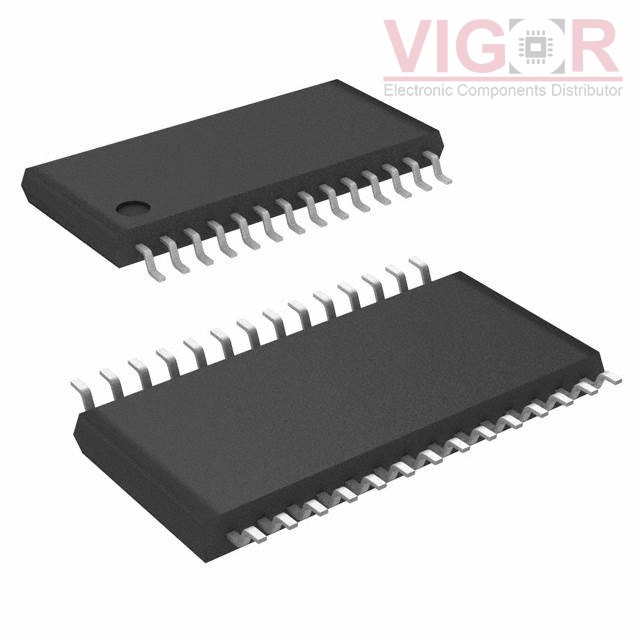

Image is for reference,
please contact us to get the real picture

Part No :: S9S08SG16E1WTLR

Manufacturer: NXP Semiconductors

Description: IC MCU 8BIT 16KB FLASH 28TSSOP

Catalog: Embedded - Microcontrollers

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: S9S08SG16E1WTLR PDF

Availability: 3000 pieces

Unit Price: ~~$4.45500~~

Current price of S9S08SG16E1WTLR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S9S08SG16E1WTLR Specifications

Type	Description
Series:	S08
Package:	Tape & Reel (TR)
Part Status:	Active
Core Processor:	S08
Core Size:	8-Bit
Speed:	40MHz
Connectivity:	I²C, LINbus, SCI, SPI
Peripherals:	LVD, POR, PWM, WDT
Number of I/O:	22
Program Memory Size:	16KB (16K x 8)
Program Memory Type:	FLASH
EEPROM Size:	-
RAM Size:	1K x 8
Voltage - Supply (Vcc/Vdd):	2.7V ~ 5.5V
Data Converters:	A/D 16x10b
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 150°C (TA)
Mounting Type:	Surface Mount
Package / Case:	28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	28-TSSOP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
