Z8F082APH020SG2156

Z8F082APH020SG2156

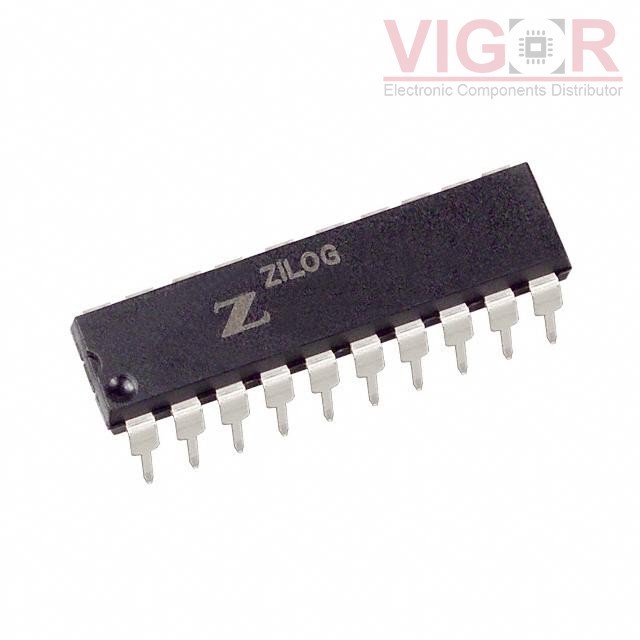

Image is for reference,
please contact us to get the real picture

Part No :

Z8F082APH020SG2156

Manufacturer
Zilog / Littelfuse
Description
IC MCU 8BIT 8KB FLASH 20DIP
Catalog
Embedded - Microcontrollers
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
Z8F082APH020SG2156 PDF
Availability
1402 pieces
Unit Price
$2.13809

Current price of Z8F082APH020SG2156 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Z8F082APH020SG2156 Specifications
Type Description
Series:Encore!® XP®
Package:Tube
Part Status:Active
Core Processor:eZ8
Core Size:8-Bit
Speed:20MHz
Connectivity:IrDA, UART/USART
Peripherals:Brown-out Detect/Reset, LED, LVD, POR, PWM, Temp Sensor, WDT
Number of I/O:17
Program Memory Size:8KB (8K x 8)
Program Memory Type:FLASH
EEPROM Size:-
RAM Size:1K x 8
Voltage - Supply (Vcc/Vdd):2.7V ~ 3.6V
Data Converters:A/D 7x10b
Oscillator Type:Internal
Operating Temperature:0°C ~ 70°C (TA)
Mounting Type:Through Hole
Package / Case:20-DIP (0.300", 7.62mm)
Supplier Device Package:20-PDIP
