LPC1768UKZ

LPC1768UKZ

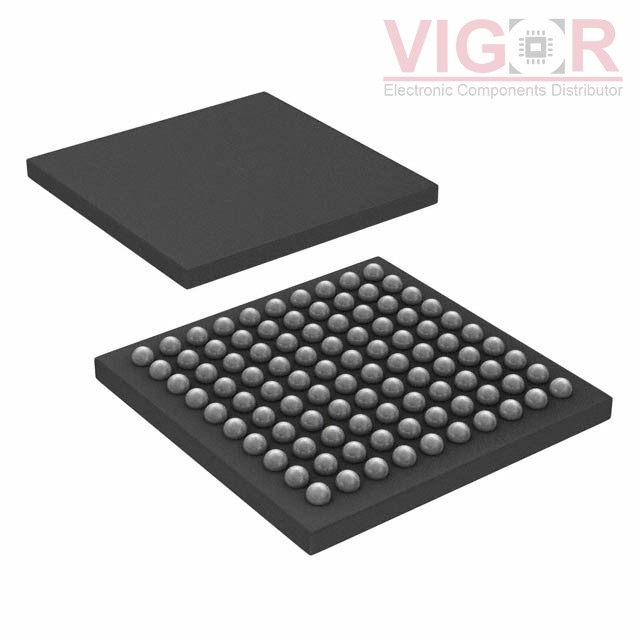

Image is for reference,
please contact us to get the real picture

Part No :

LPC1768UKZ

Manufacturer
NXP Semiconductors
Description
IC MCU 32BIT 512KB FLSH 100WLCSP
Catalog
Embedded - Microcontrollers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
LPC1768UKZ PDF
Availability
1779 pieces
Unit Price
$9.87250

Current price of LPC1768UKZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LPC1768UKZ Specifications
Type Description
Series:LPC17xx
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Core Processor:ARM® Cortex®-M3
Core Size:32-Bit
Speed:100MHz
Connectivity:CANbus, Ethernet, I²C, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG
Peripherals:Brown-out Detect/Reset, DMA, I²S, Motor Control PWM, POR, PWM, WDT
Number of I/O:70
Program Memory Size:512KB (512K x 8)
Program Memory Type:FLASH
EEPROM Size:-
RAM Size:64K x 8
Voltage - Supply (Vcc/Vdd):2.4V ~ 3.6V
Data Converters:A/D 8x12b; D/A 1x10b
Oscillator Type:Internal
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:100-UFBGA, WLCSP
Supplier Device Package:100-WLCSP (5.07x5.07)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT S9S12VR64AF0MLCR

S9S12VR64AF0MLCR

IC MCU 16BIT 64KB FLASH 32LQFP
HOT R5F100PHAFA#50

R5F100PHAFA#50

IC MCU 16BIT 192KB FLASH 100LQFP

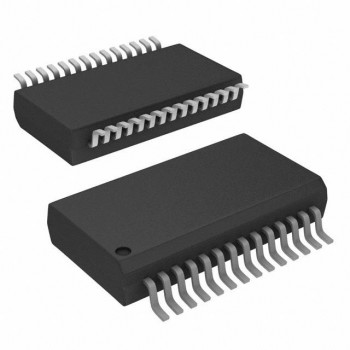

HOT PIC18F26K42-E/SS
