DG2738DN-T1-E4

DG2738DN-T1-E4

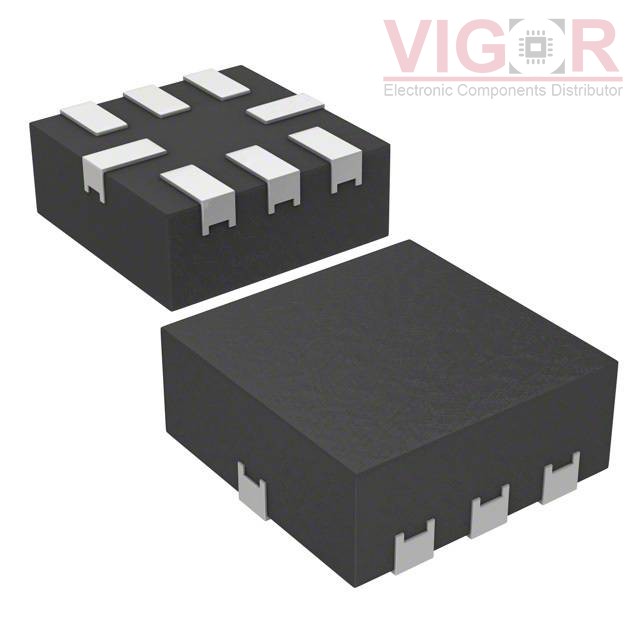

Image is for reference,
please contact us to get the real picture

Part No :

DG2738DN-T1-E4

Manufacturer
Vishay / Siliconix
Description
IC SWITCH 2XSPST 8 OHM 8MINIQFN
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
DG2738DN-T1-E4 PDF
Availability
132 pieces
Unit Price
$0.91000

Current price of DG2738DN-T1-E4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DG2738DN-T1-E4 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Switch Circuit:SPST - NC
Multiplexer/Demultiplexer Circuit:1:1
Number of Circuits:2
On-State Resistance (Max):8Ohm
Channel-to-Channel Matching (ΔRon):100mOhm
Voltage - Supply, Single (V+):2.3V ~ 4.3V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):60ns, 50ns
-3db Bandwidth:720MHz
Charge Injection:10.4pC
Channel Capacitance (CS(off), CD(off)):4.4pF, 3.8pF
Current - Leakage (IS(off)) (Max):10nA
Crosstalk:-109dB @ 1MHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:8-UFQFN
Supplier Device Package:8-miniQFN (1.4x1.4)
