ADGS1414DBCCZ

ADGS1414DBCCZ

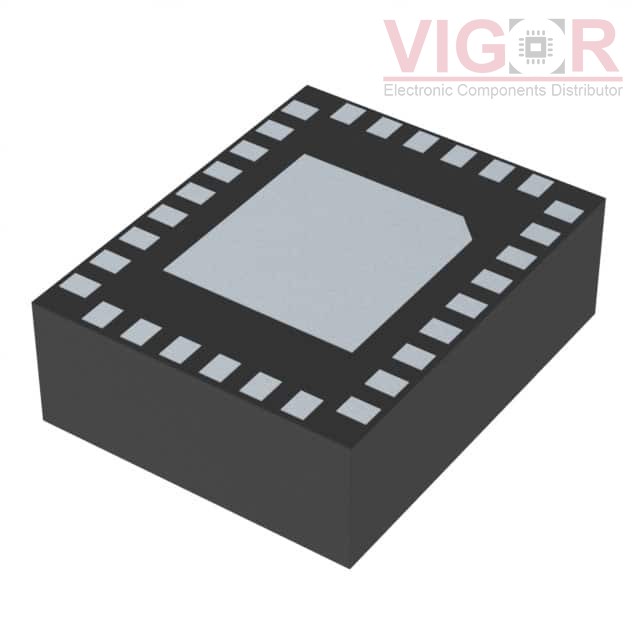

Image is for reference,
please contact us to get the real picture

Part No :

ADGS1414DBCCZ

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
FULLY INTEGRATED, 1.5 ? RON, 15
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
ADGS1414DBCCZ PDF
Availability
6500 pieces
Unit Price
$20.81000

Current price of ADGS1414DBCCZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADGS1414DBCCZ Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Switch Circuit:SPST
Multiplexer/Demultiplexer Circuit:1:1
Number of Circuits:8
On-State Resistance (Max):1.8Ohm
Channel-to-Channel Matching (ΔRon):300mOhm
Voltage - Supply, Single (V+):5V ~ 20V, ±4.5V ~ 16.5V
Voltage - Supply, Dual (V±):5V ~ 20V, ±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max):475ns, 190ns
-3db Bandwidth:170MHz
Charge Injection:-20pC
Channel Capacitance (CS(off), CD(off)):20pF, 21pF
Current - Leakage (IS(off)) (Max):30pA
Crosstalk:-75dB @ 1MHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:30-FLGA Exposed Pad
Supplier Device Package:30-LGA (4x5)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
