DG2034EDN-T1-GE4

DG2034EDN-T1-GE4

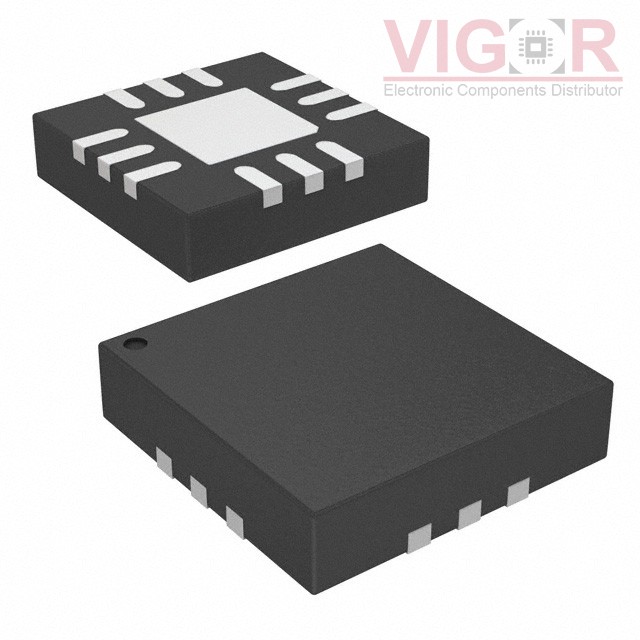

Image is for reference,
please contact us to get the real picture

Part No :

DG2034EDN-T1-GE4

Manufacturer
Vishay / Siliconix
Description
IC SWITCH SP4T SINGLE 12QFN
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
DG2034EDN-T1-GE4 PDF
Availability
503 pieces
Unit Price
$1.54000

Current price of DG2034EDN-T1-GE4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DG2034EDN-T1-GE4 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Switch Circuit:SP4T
Multiplexer/Demultiplexer Circuit:4:1
Number of Circuits:1
On-State Resistance (Max):2.5Ohm
Channel-to-Channel Matching (ΔRon):20mOhm
Voltage - Supply, Single (V+):1.8V ~ 5.5V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):25ns, 20ns
-3db Bandwidth:166MHz
Charge Injection:-2.6pC
Channel Capacitance (CS(off), CD(off)):7pF, -
Current - Leakage (IS(off)) (Max):2nA
Crosstalk:-71dB @ 1MHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:12-VFQFN Exposed Pad
Supplier Device Package:12-QFN (3x3)
