ADG1209YCPZ-REEL7

ADG1209YCPZ-REEL7

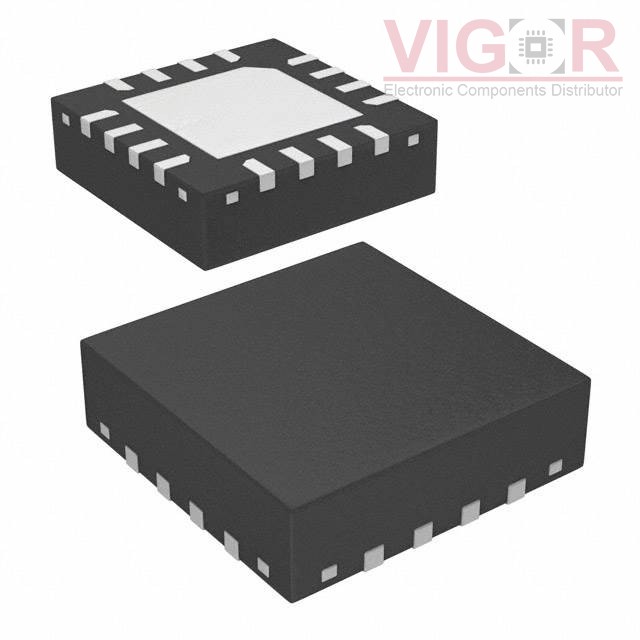

Image is for reference,
please contact us to get the real picture

Part No :

ADG1209YCPZ-REEL7

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC MULTIPLEXER DUAL 4X1 16LFCSP
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
ADG1209YCPZ-REEL7 PDF
Availability
3654 pieces
Unit Price
$6.96000

Current price of ADG1209YCPZ-REEL7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADG1209YCPZ-REEL7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Switch Circuit:SP4T
Multiplexer/Demultiplexer Circuit:4:1
Number of Circuits:2
On-State Resistance (Max):200Ohm
Channel-to-Channel Matching (ΔRon):3.5Ohm
Voltage - Supply, Single (V+):5V ~ 16.5V
Voltage - Supply, Dual (V±):±5V ~ 16.5V
Switch Time (Ton, Toff) (Max):95ns, 100ns
-3db Bandwidth:550MHz
Charge Injection:0.4pC
Channel Capacitance (CS(off), CD(off)):1.5pF, 4.5pF
Current - Leakage (IS(off)) (Max):100pA
Crosstalk:-85dB @ 1MHz
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:16-VQFN Exposed Pad, CSP
Supplier Device Package:16-LFCSP-VQ (4x4)
