CD74HC4052NSRG4

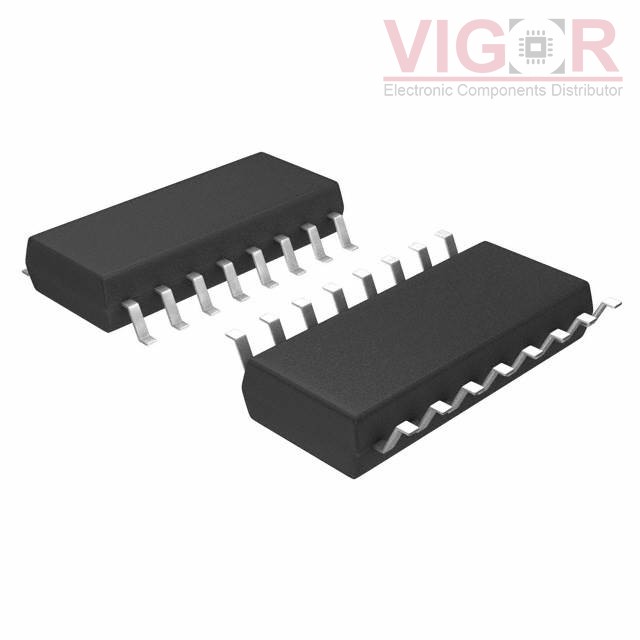

Image is for reference,
please contact us to get the real picture

Part No :: CD74HC4052NSRG4

Manufacturer: Texas Instruments

Description: IC MUX/DEMUX DUAL 4X1 16SO

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: CD74HC4052NSRG4 PDF

Availability: 1692 pieces

Unit Price: ~~$0.18036~~

Current price of CD74HC4052NSRG4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CD74HC4052NSRG4 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Switch Circuit:	SP4T
Multiplexer/Demultiplexer Circuit:	4:1
Number of Circuits:	2
On-State Resistance (Max):	130Ohm
Channel-to-Channel Matching (ΔRon):	5Ohm
Voltage - Supply, Single (V+):	2V ~ 6V
Voltage - Supply, Dual (V±):	±1V ~ 5V
Switch Time (Ton, Toff) (Max):	-
-3db Bandwidth:	185MHz
Charge Injection:	-
Channel Capacitance (CS(off), CD(off)):	12pF
Current - Leakage (IS(off)) (Max):	200nA
Crosstalk:	-
Operating Temperature:	-55°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.209", 5.30mm Width)
Supplier Device Package:	16-SO

Please confirm the specifications of the products when ordering.
