ADG798HFZ

ADG798HFZ

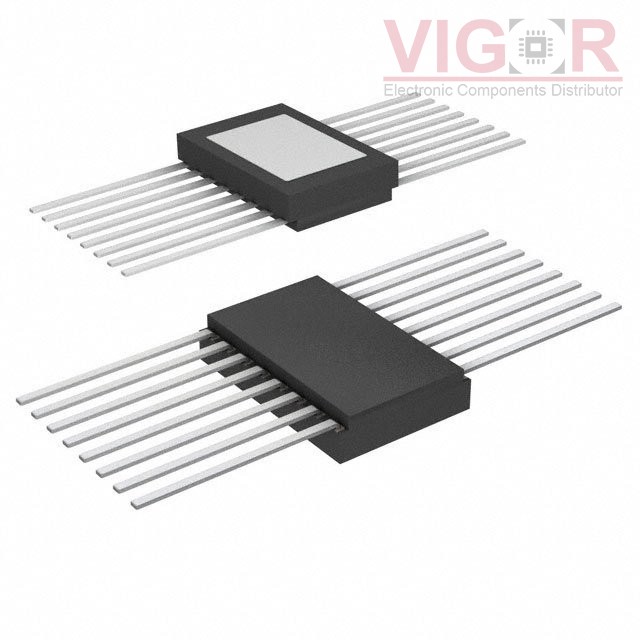

Image is for reference,
please contact us to get the real picture

Part No :

ADG798HFZ

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC MUX/DEMUX 8:1 16FLATPACK
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
ADG798HFZ PDF
Availability
2704 pieces
Unit Price
$149.04000

Current price of ADG798HFZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADG798HFZ Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Switch Circuit:-
Multiplexer/Demultiplexer Circuit:8:1
Number of Circuits:1
On-State Resistance (Max):10Ohm
Channel-to-Channel Matching (ΔRon):1.25Ohm
Voltage - Supply, Single (V+):3V ~ 5.5V
Voltage - Supply, Dual (V±):±2.5V
Switch Time (Ton, Toff) (Max):30ns, 20ns
-3db Bandwidth:55MHz
Charge Injection:3pC
Channel Capacitance (CS(off), CD(off)):13pF, 85pF
Current - Leakage (IS(off)) (Max):180nA
Crosstalk:-60dB @ 10MHz
Operating Temperature:-55°C ~ 210°C (TA)
Mounting Type:Surface Mount
Package / Case:16-CFlatPack
Supplier Device Package:16-CFlatPack
