MAX4684EUB+

MAX4684EUB+

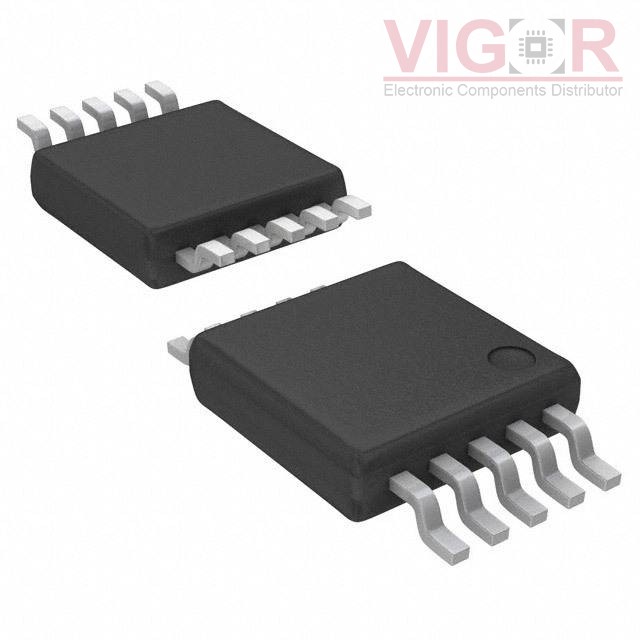

Image is for reference,
please contact us to get the real picture

Part No :

MAX4684EUB+

Manufacturer
Maxim Integrated
Description
IC SWITCH DUAL SPDT 10UMAX
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
MAX4684EUB+ PDF
Availability
616200 pieces
Unit Price
$3.61000

Current price of MAX4684EUB+ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MAX4684EUB+ Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Switch Circuit:SPDT
Multiplexer/Demultiplexer Circuit:2:1
Number of Circuits:2
On-State Resistance (Max):800mOhm
Channel-to-Channel Matching (ΔRon):60mOhm
Voltage - Supply, Single (V+):1.8V ~ 5.5V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):50ns, 30ns
-3db Bandwidth:-
Charge Injection:200pC
Channel Capacitance (CS(off), CD(off)):84pF, 37pF
Current - Leakage (IS(off)) (Max):1nA
Crosstalk:-68dB @ 100kHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package:10-uMAX
