MAX349EWN+

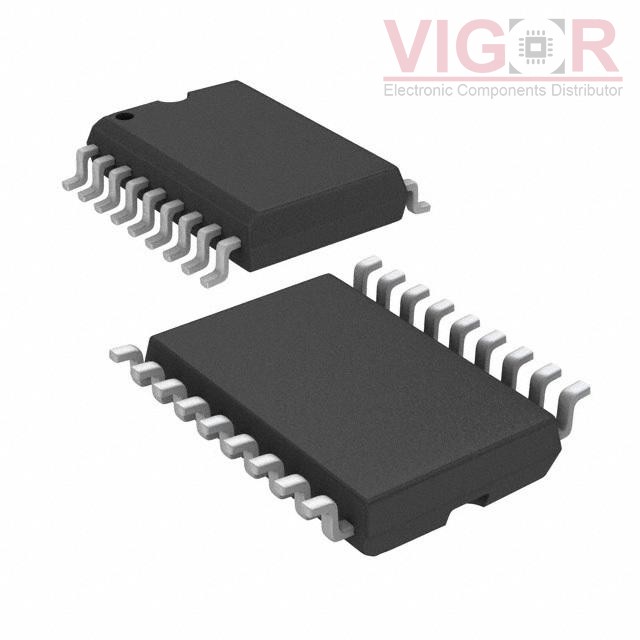

Image is for reference,
please contact us to get the real picture

Part No :: MAX349EWN+

Manufacturer: Maxim Integrated

Description: IC MULTIPLEXER 8X1 18SOIC

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

Shipped from: HK warehouse

Expected Shipping Date: Jul 07 - Jul 11 2025

DataSheet: MAX349EWN+ PDF

Availability: 153920 pieces

Unit Price: ~~$8.01000~~

Current price of MAX349EWN+ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MAX349EWN+ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Switch Circuit:	-
Multiplexer/Demultiplexer Circuit:	8:1
Number of Circuits:	1
On-State Resistance (Max):	100Ohm
Channel-to-Channel Matching (ΔRon):	16Ohm (Max)
Voltage - Supply, Single (V+):	2.7V ~ 16V
Voltage - Supply, Dual (V±):	±2.7V ~ 8V
Switch Time (Ton, Toff) (Max):	275ns, 150ns
-3db Bandwidth:	-
Charge Injection:	1pC
Channel Capacitance (CS(off), CD(off)):	2pF, 2pF
Current - Leakage (IS(off)) (Max):	100pA
Crosstalk:	-90dB @ 100kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	18-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	18-SOIC

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
