MAX4620EUD+

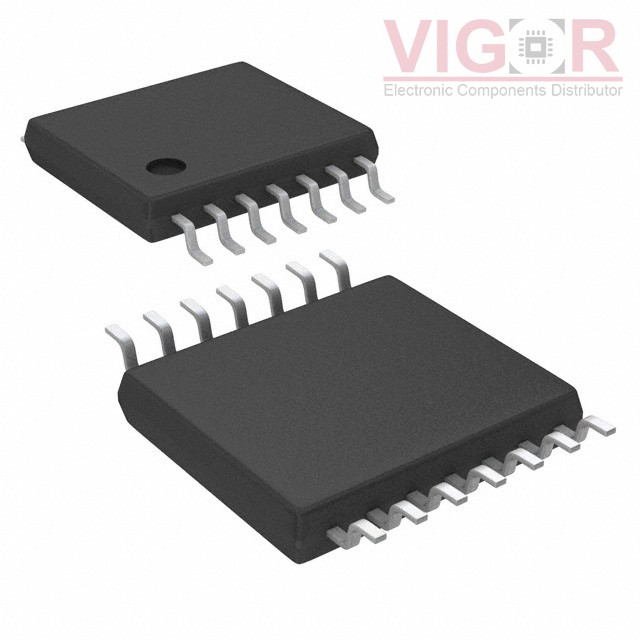

Image is for reference,
please contact us to get the real picture

Part No :: MAX4620EUD+

Manufacturer: Maxim Integrated

Description: IC SWITCH QUAD SPST 14TSSOP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: MAX4620EUD+ PDF

Availability: 1642688 pieces

Unit Price: ~~$3.02000~~

Current price of MAX4620EUD+ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MAX4620EUD+ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Switch Circuit:	SPST - NO
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	4
On-State Resistance (Max):	70Ohm
Channel-to-Channel Matching (ΔRon):	500mOhm
Voltage - Supply, Single (V+):	2V ~ 12V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	15ns, 10ns
-3db Bandwidth:	-
Charge Injection:	3pC
Channel Capacitance (CS(off), CD(off)):	5pF, 8.5pF
Current - Leakage (IS(off)) (Max):	1nA
Crosstalk:	-96dB @ 100kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	14-TSSOP

Please confirm the specifications of the products when ordering.
