MUX506IDWR

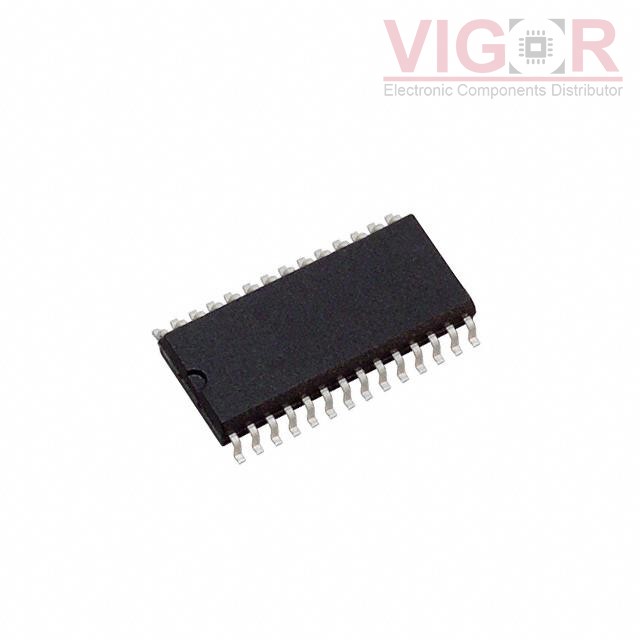

Image is for reference,
please contact us to get the real picture

Part No :: MUX506IDWR

Manufacturer: Texas Instruments

Description: IC SWITCH SINGLE 28SOIC

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: MUX506IDWR PDF

Availability: 543 pieces

Unit Price: ~~$3.89000~~

Current price of MUX506IDWR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MUX506IDWR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Circuit:	-
Multiplexer/Demultiplexer Circuit:	16:1
Number of Circuits:	1
On-State Resistance (Max):	200Ohm
Channel-to-Channel Matching (ΔRon):	6Ohm
Voltage - Supply, Single (V+):	10V ~ 36V
Voltage - Supply, Dual (V±):	±5V ~ 18V
Switch Time (Ton, Toff) (Max):	136ns, 78ns
-3db Bandwidth:	-
Charge Injection:	0.67pC
Channel Capacitance (CS(off), CD(off)):	3pF, 12.2pF
Current - Leakage (IS(off)) (Max):	1nA
Crosstalk:	-96dB @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	28-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	28-SOIC

Please confirm the specifications of the products when ordering.
