ADG774ABCPZ-R2

ADG774ABCPZ-R2

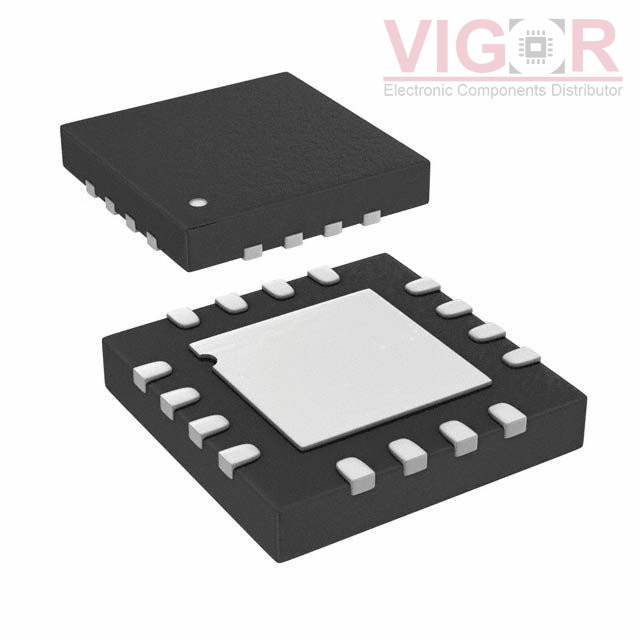

Image is for reference,
please contact us to get the real picture

Part No :

ADG774ABCPZ-R2

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC MUX QUAD 2X1 16LFCSP
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
ADG774ABCPZ-R2 PDF
Availability
5228 pieces
Unit Price
$6.43000

Current price of ADG774ABCPZ-R2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADG774ABCPZ-R2 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Switch Circuit:SPDT
Multiplexer/Demultiplexer Circuit:2:1
Number of Circuits:4
On-State Resistance (Max):3.5Ohm
Channel-to-Channel Matching (ΔRon):150mOhm
Voltage - Supply, Single (V+):3V ~ 5V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):12ns, 6ns
-3db Bandwidth:400MHz
Charge Injection:6pC
Channel Capacitance (CS(off), CD(off)):5pF, 7.5pF
Current - Leakage (IS(off)) (Max):100pA
Crosstalk:-70dB @ 10MHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:16-WFQFN Exposed Pad, CSP
Supplier Device Package:16-LFCSP (3x3)
