PI3USB4000D

PI3USB4000D

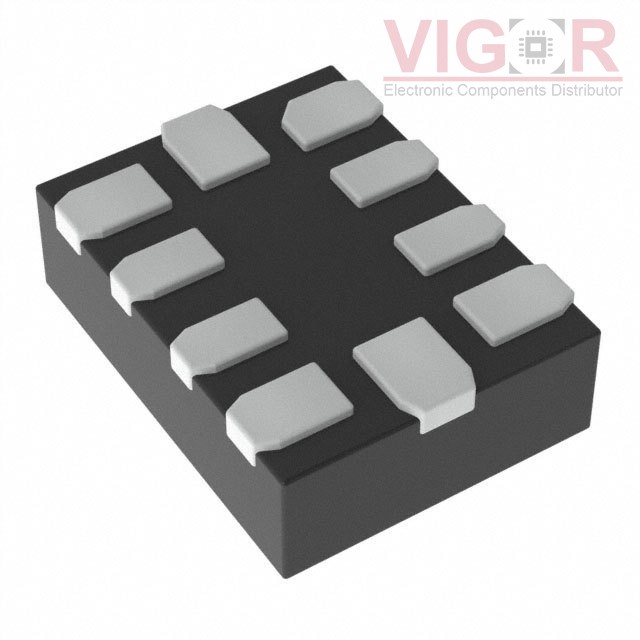

Image is for reference,
please contact us to get the real picture

Part No :

PI3USB4000D

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
USB2 SWITCH,U-QFN1520-10,T&R,3K
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
PI3USB4000D PDF
Availability
165 pieces
Unit Price
$1.57000

Current price of PI3USB4000D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PI3USB4000D Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Switch Circuit:SPDT
Multiplexer/Demultiplexer Circuit:2:1
Number of Circuits:1
On-State Resistance (Max):9Ohm
Channel-to-Channel Matching (ΔRon):500mOhm (Typ)
Voltage - Supply, Single (V+):2.7V ~ 5.5V
Voltage - Supply, Dual (V±):2.7V ~ 5.5V
Switch Time (Ton, Toff) (Max):100µs, 50ns
-3db Bandwidth:1GHz
Charge Injection:-
Channel Capacitance (CS(off), CD(off)):5pF, 9pF
Current - Leakage (IS(off)) (Max):1µA
Crosstalk:-35dB @ 240MHz
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:10-UFQFN
Supplier Device Package:10-UQFN (1.5x2)
