TMUX1574PWR

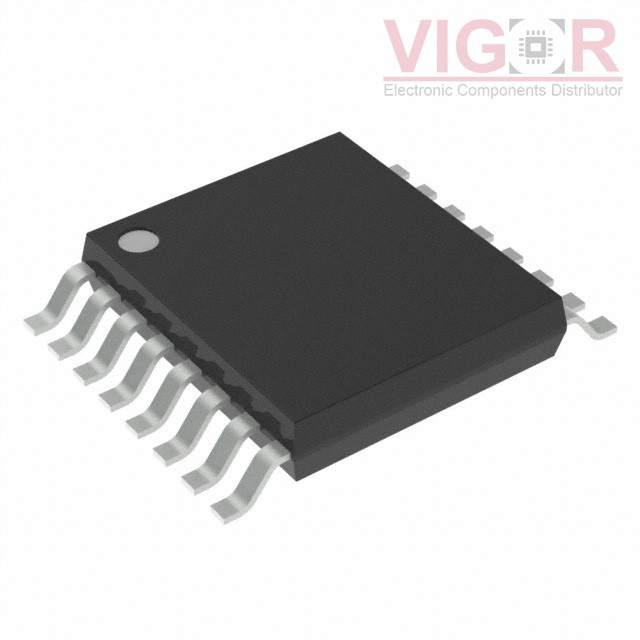

Image is for reference,
please contact us to get the real picture

Part No :: TMUX1574PWR

Manufacturer: Texas Instruments

Description: IC SWITCH SPDT QUAD 16TSSOP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

Shipped from: HK warehouse

Expected Shipping Date: Aug 23 - Aug 27 2025

DataSheet: TMUX1574PWR PDF

Availability: 4646 pieces

Unit Price: ~~$0.80000~~

Current price of TMUX1574PWR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TMUX1574PWR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	4
On-State Resistance (Max):	4.5Ohm
Channel-to-Channel Matching (ΔRon):	70mOhm
Voltage - Supply, Single (V+):	-
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	35µs, 95ns
-3db Bandwidth:	2GHz
Charge Injection:	3.5pC
Channel Capacitance (CS(off), CD(off)):	3.5pF, 3.5pF
Current - Leakage (IS(off)) (Max):	100nA
Crosstalk:	-90dB @ 100kHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	16-TSSOP

Please confirm the specifications of the products when ordering.
