ADGS1612BCPZ

ADGS1612BCPZ

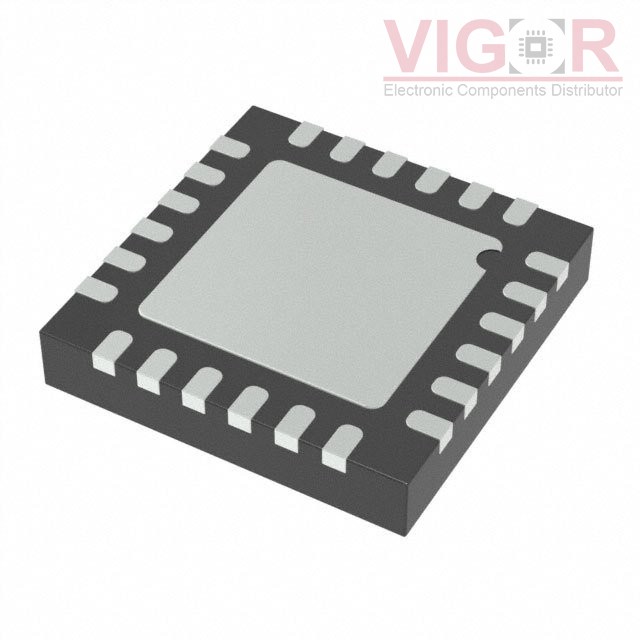

Image is for reference,
please contact us to get the real picture

Part No :

ADGS1612BCPZ

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC SWITCH SPST QUAD 24-LFCSP
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Aug 25 - Aug 29 2025
DataSheet
ADGS1612BCPZ PDF
Availability
140 pieces
Unit Price
$6.76000

Current price of ADGS1612BCPZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADGS1612BCPZ Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Switch Circuit:SPST - NO
Multiplexer/Demultiplexer Circuit:1:1
Number of Circuits:4
On-State Resistance (Max):1Ohm
Channel-to-Channel Matching (ΔRon):40mOhm
Voltage - Supply, Single (V+):3.3V ~ 16V
Voltage - Supply, Dual (V±):±3.3V ~ 8V
Switch Time (Ton, Toff) (Max):-
-3db Bandwidth:42MHz
Charge Injection:140pC
Channel Capacitance (CS(off), CD(off)):63pF, 63pF
Current - Leakage (IS(off)) (Max):100pA
Crosstalk:-110dB @ 1MHz
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:24-VFQFN Exposed Pad, CSP
Supplier Device Package:24-LFCSP (4x4)
