MAX4536EEE+

MAX4536EEE+

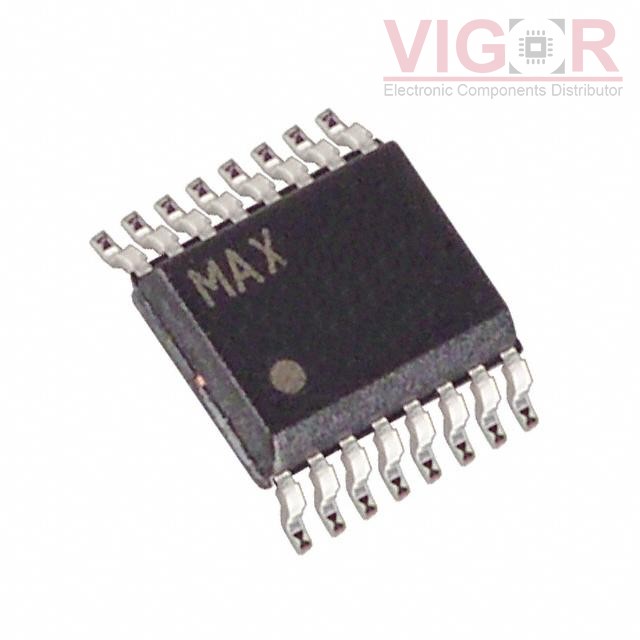

Image is for reference,
please contact us to get the real picture

Part No :

MAX4536EEE+

Manufacturer
Maxim Integrated
Description
IC SWITCH QUAD SPST 16QSOP
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
MAX4536EEE+ PDF
Availability
3007200 pieces
Unit Price
$2.29000

Current price of MAX4536EEE+ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MAX4536EEE+ Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Switch Circuit:SPST - NO
Multiplexer/Demultiplexer Circuit:1:1
Number of Circuits:4
On-State Resistance (Max):100Ohm
Channel-to-Channel Matching (ΔRon):1Ohm
Voltage - Supply, Single (V+):2V ~ 12V
Voltage - Supply, Dual (V±):±2V ~ 6V
Switch Time (Ton, Toff) (Max):100ns, 50ns
-3db Bandwidth:-
Charge Injection:1pC
Channel Capacitance (CS(off), CD(off)):2pF, 2pF
Current - Leakage (IS(off)) (Max):2nA
Crosstalk:-75dB @ 1MHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:16-SSOP (0.154", 3.90mm Width)
Supplier Device Package:16-QSOP
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT AD7511DIJN

AD7511DIJN

PROTECTED ANALOG SWITCHES
HOT MAX4513ESE+

MAX4513ESE+

IC SWITCH QUAD SPST 16SOIC

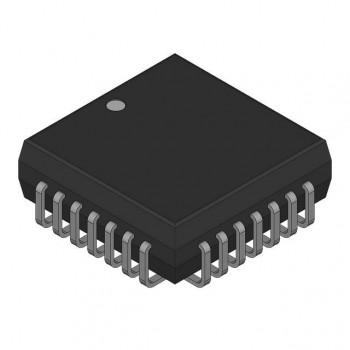

HOT MAX306EQI
