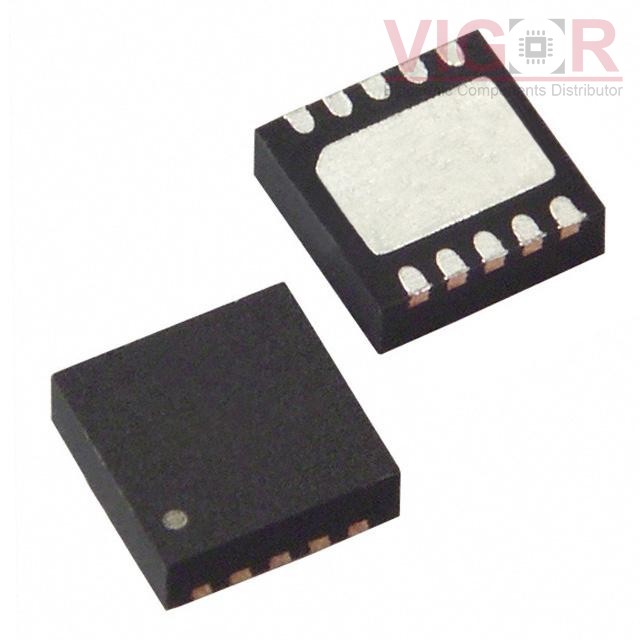

DG2517DN-T1-E4

Image is for reference,
please contact us to get the real picture

Part No :: DG2517DN-T1-E4

Manufacturer: Vishay / Siliconix

Description: IC SWITCH DUAL SPDT 10DFN

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

Shipped from: HK warehouse

Expected Shipping Date: Aug 10 - Aug 14 2025

DataSheet: DG2517DN-T1-E4 PDF

Availability: 585 pieces

Unit Price: ~~$0.00000~~

Current price of DG2517DN-T1-E4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DG2517DN-T1-E4 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	4Ohm
Channel-to-Channel Matching (ΔRon):	100mOhm
Voltage - Supply, Single (V+):	1.8V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	25ns, 20ns
-3db Bandwidth:	242MHz
Charge Injection:	2pC
Channel Capacitance (CS(off), CD(off)):	8pF
Current - Leakage (IS(off)) (Max):	1nA
Crosstalk:	-73dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	10-VFDFN Exposed Pad
Supplier Device Package:	10-DFN (3x3)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

CD4097BM96E4

IC MUX/DEMUX DUAL 1X8 24SOIC

HOT

MAX4051ACSE

IC MULTIPLEXER 8X1 16SOIC

HOT

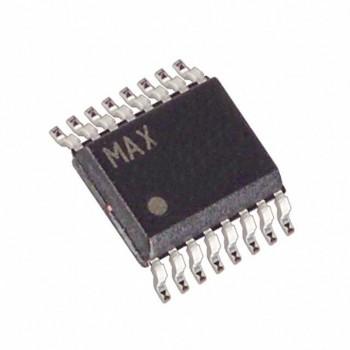

MAX4051ACEE+TG05
