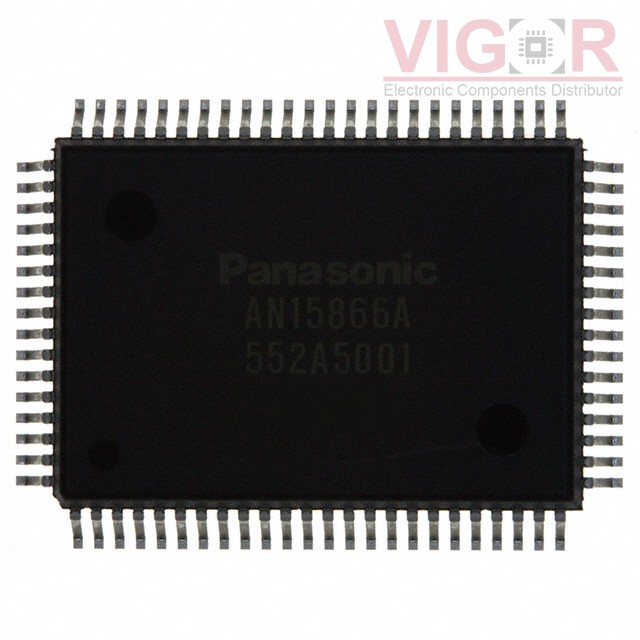

AN15866A-VT

AN15866A-VT

Image is for reference,
please contact us to get the real picture

Part No :

AN15866A-VT

Manufacturer
Panasonic
Description
IC VIDEO SWITCH 17IN/5OUT QFH-80
Catalog
Interface - Analog Switches - Special Purpose
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
AN15866A-VT PDF
Availability
50 pieces
Unit Price
$6.85000

Current price of AN15866A-VT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AN15866A-VT Specifications
Type Description
Series:-
Package:Tray
Part Status:Obsolete
Applications:Video
Multiplexer/Demultiplexer Circuit:-
Switch Circuit:-
Number of Channels:-
On-State Resistance (Max):-
Voltage - Supply, Single (V+):8.5V ~ 9.5V
Voltage - Supply, Dual (V±):-
-3db Bandwidth:-
Features:-
Operating Temperature:-20°C ~ 75°C (TA)
Mounting Type:Surface Mount
Package / Case:80-QFP
Supplier Device Package:80-QFH (14x20)
