SN65LVDS109DBTG4

SN65LVDS109DBTG4

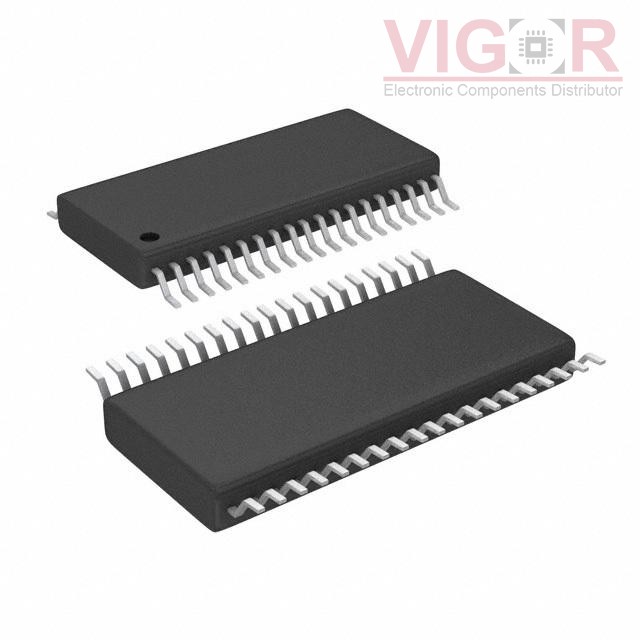

Image is for reference,
please contact us to get the real picture

Part No :

SN65LVDS109DBTG4

Manufacturer
Texas Instruments
Description
IC MULTIPLEXER 1CH 38TSSOP
Catalog
Interface - Signal Buffers, Repeaters, Splitters
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
SN65LVDS109DBTG4 PDF
Availability
3000 pieces
Unit Price
$7.17360

Current price of SN65LVDS109DBTG4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SN65LVDS109DBTG4 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Type:Buffer, Multiplexer
Applications:-
Input:LVDS
Output:LVDS
Data Rate (Max):400Mbps
Number of Channels:1 x 2:8
Delay Time:2.8ns
Signal Conditioning:-
Capacitance - Input:5 pF
Voltage - Supply:3V ~ 3.6V
Current - Supply:46mA
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:38-TFSOP (0.173", 4.40mm Width)
Supplier Device Package:38-TSSOP
