SN74AC564N

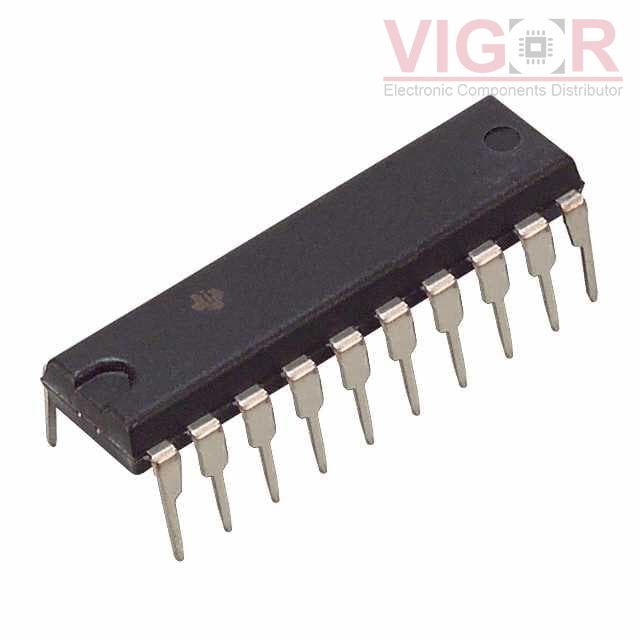

Image is for reference,
please contact us to get the real picture

Part No :: SN74AC564N

Manufacturer: Texas Instruments

Description: IC FF D-TYPE SNGL 8BIT 20DIP

Catalog: Logic - Flip Flops

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: SN74AC564N PDF

Availability: 380 pieces

Unit Price: ~~$2.14000~~

Current price of SN74AC564N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SN74AC564N Specifications

Type	Description
Series:	74AC
Package:	Tube
Part Status:	Active
Function:	Standard
Type:	D-Type
Output Type:	Tri-State, Inverted
Number of Elements:	1
Number of Bits per Element:	8
Clock Frequency:	95 MHz
Max Propagation Delay @ V, Max CL:	10.5ns @ 5V, 50pF
Trigger Type:	Positive Edge
Current - Output High, Low:	24mA, 24mA
Voltage - Supply:	2V ~ 6V
Current - Quiescent (Iq):	4 µA
Input Capacitance:	4.5 pF
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Through Hole
Supplier Device Package:	20-PDIP
Package / Case:	20-DIP (0.300", 7.62mm)

Please confirm the specifications of the products when ordering.
