SN74F74NG4

SN74F74NG4

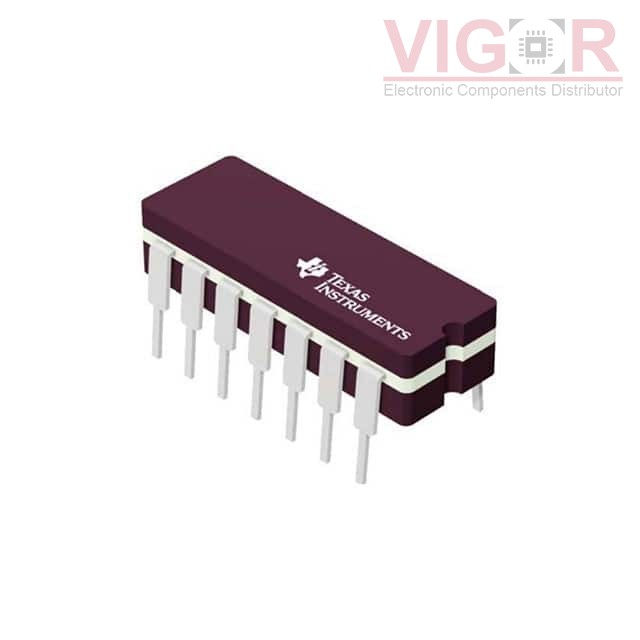

Image is for reference,
please contact us to get the real picture

Part No :

SN74F74NG4

Manufacturer
Texas Instruments
Description
IC FF D-TYPE DUAL 1BIT 14DIP
Catalog
Logic - Flip Flops
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
SN74F74NG4 PDF
Availability
2793 pieces
Unit Price
$0.26850

Current price of SN74F74NG4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SN74F74NG4 Specifications
Type Description
Series:74F
Package:Tube
Part Status:Active
Function:Set(Preset) and Reset
Type:D-Type
Output Type:Complimentary
Number of Elements:2
Number of Bits per Element:1
Clock Frequency:145 MHz
Max Propagation Delay @ V, Max CL:8ns @ 5V, 50pF
Trigger Type:Positive Edge
Current - Output High, Low:1mA, 20mA
Voltage - Supply:4.5V ~ 5.5V
Current - Quiescent (Iq):16 mA
Input Capacitance:-
Operating Temperature:0°C ~ 70°C (TA)
Mounting Type:Through Hole
Supplier Device Package:14-PDIP
Package / Case:14-DIP (0.300", 7.62mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 74LVX273TTR

74LVX273TTR

IC FF D-TYPE SNGL 8BIT 20TSSOP
HOT 74F174SC

74F174SC

D FLIP-FLOP

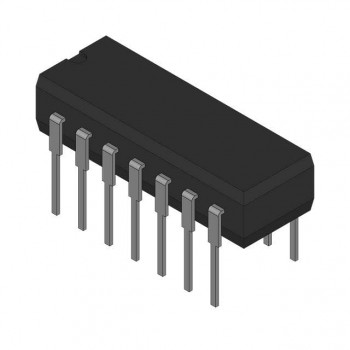

HOT MC3051P
