74HC109D-Q100J

74HC109D-Q100J

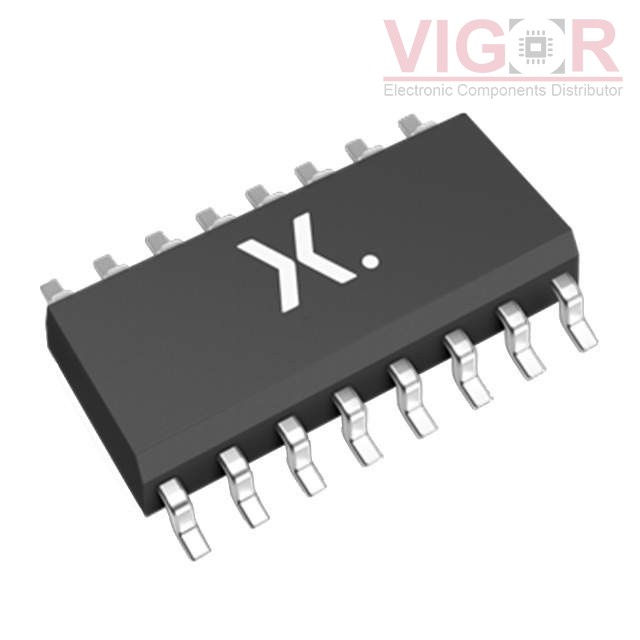

Image is for reference,
please contact us to get the real picture

Part No :

74HC109D-Q100J

Manufacturer
Nexperia
Description
IC FF JK TYPE DUAL 1BIT 16SO
Catalog
Logic - Flip Flops
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
74HC109D-Q100J PDF
Availability
882 pieces
Unit Price
$0.43000

Current price of 74HC109D-Q100J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

74HC109D-Q100J Specifications
Type Description
Series:Automotive, AEC-Q100, 74HC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Function:Set(Preset) and Reset
Type:JK Type
Output Type:Complimentary
Number of Elements:2
Number of Bits per Element:1
Clock Frequency:81 MHz
Max Propagation Delay @ V, Max CL:16ns @ 6V, 50pF
Trigger Type:Positive Edge
Current - Output High, Low:5.2mA, 5.2mA
Voltage - Supply:2V ~ 6V
Current - Quiescent (Iq):4 µA
Input Capacitance:3.5 pF
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:16-SO
Package / Case:16-SOIC (0.154", 3.90mm Width)
