MC14069UBDG

Image is for reference,
please contact us to get the real picture

Part No :: MC14069UBDG

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: IC INVERTER 6CH 6-INP 14SOIC

Catalog: Logic - Gates and Inverters

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: MC14069UBDG PDF

Availability: 78 pieces

Unit Price: ~~$0.42000~~

Current price of MC14069UBDG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MC14069UBDG Specifications

Type	Description
Series:	4000B
Package:	Tube
Part Status:	Active
Logic Type:	Inverter
Number of Circuits:	6
Number of Inputs:	6
Features:	-
Voltage - Supply:	3V ~ 18V
Current - Quiescent (Max):	1 µA
Current - Output High, Low:	8.8mA, 8.8mA
Logic Level - Low:	1V ~ 2.5V
Logic Level - High:	4V ~ 12.5V
Max Propagation Delay @ V, Max CL:	55ns @ 15V, 50pF
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Supplier Device Package:	14-SOIC
Package / Case:	14-SOIC (0.154", 3.90mm Width)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

NC7NZU04L8X

IC INVERTER 3CH 3-INP 8MICROPAK

HOT

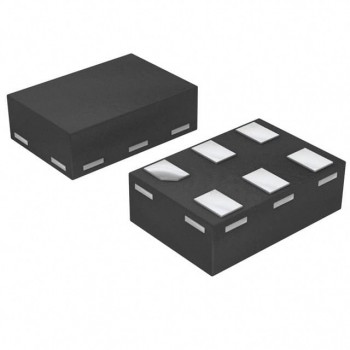

74LVC1G27GM,115

IC GATE NOR 1CH 3-INP 6XSON

HOT

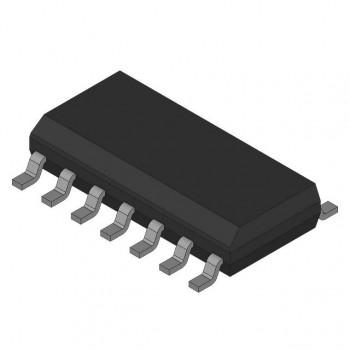

74HC14D/C4118
