SN74ALS03BN

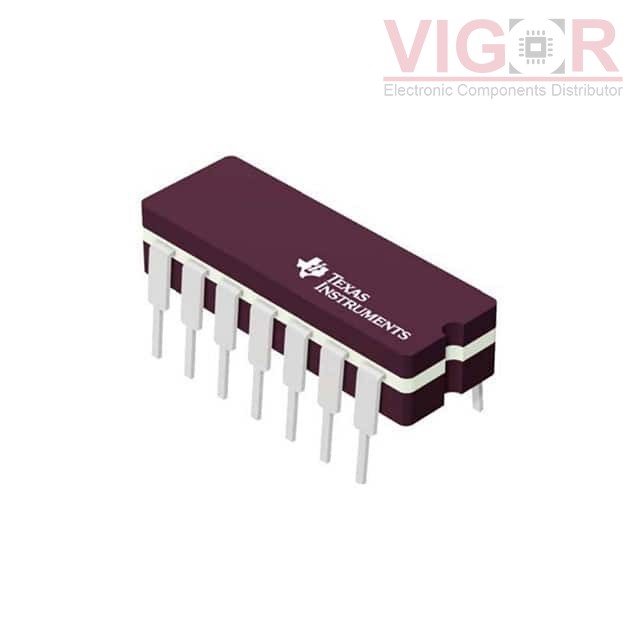

Image is for reference,
please contact us to get the real picture

Part No :

SN74ALS03BN

Manufacturer
Texas Instruments
Description
IC GATE NAND OPEN 4CH 2-IN 14DIP
Catalog
Logic - Gates and Inverters
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
SN74ALS03BN PDF
Availability
1079 pieces
Unit Price
$0.89000

Current price of SN74ALS03BN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:74ALS
Package:Tube
Part Status:Active
Logic Type:NAND Gate
Number of Circuits:4
Number of Inputs:2
Features:Open Collector
Voltage - Supply:4.5V ~ 5.5V
Current - Quiescent (Max):-
Current - Output High, Low:-, 8mA
Logic Level - Low:0.8V
Logic Level - High:2V
Max Propagation Delay @ V, Max CL:50ns @ 5V, 50pF
Operating Temperature:0°C ~ 70°C
Mounting Type:Through Hole
Supplier Device Package:14-PDIP
Package / Case:14-DIP (0.300", 7.62mm)
