SN74LS09N

SN74LS09N

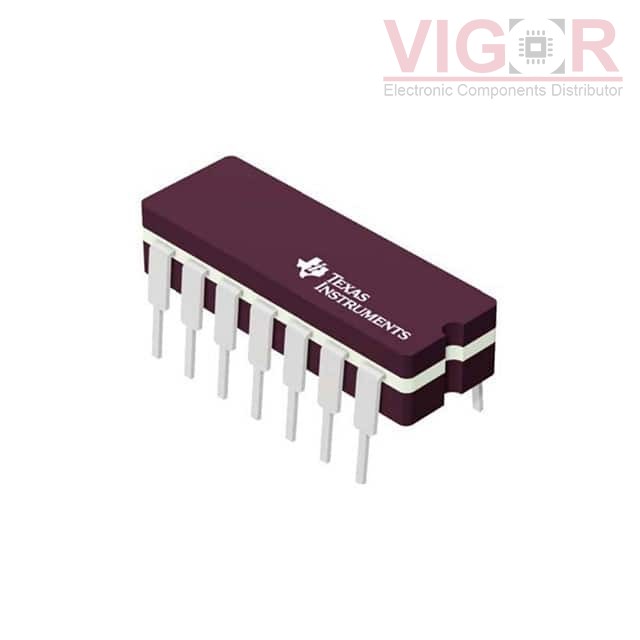

Image is for reference,
please contact us to get the real picture

Part No :

SN74LS09N

Manufacturer
Texas Instruments
Description
IC GATE AND OP COL 4CH 2IN 14DIP
Catalog
Logic - Gates and Inverters
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
SN74LS09N PDF
Availability
995 pieces
Unit Price
$1.04000

Current price of SN74LS09N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SN74LS09N Specifications
Type Description
Series:74LS
Package:Tube
Part Status:Active
Logic Type:AND Gate
Number of Circuits:4
Number of Inputs:2
Features:Open Collector
Voltage - Supply:4.75V ~ 5.25V
Current - Quiescent (Max):-
Current - Output High, Low:-, 8mA
Logic Level - Low:0.8V
Logic Level - High:2V
Max Propagation Delay @ V, Max CL:35ns @ 5V, 15pF
Operating Temperature:0°C ~ 70°C
Mounting Type:Through Hole
Supplier Device Package:14-PDIP
Package / Case:14-DIP (0.300", 7.62mm)
